Check Radio Frequency Range Switch-Over

NOTE:

Turn the ignition switch to ACC.
Press the button (a) to display the Audio OFF screen.
Touch the screen in order from (b) to (e).

Fig 1: Audio System Screen Touching Sequence
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Pressing the button (a) or turning the ignition switch from the OFF to ACC position can exit the Line Diag mode.
{Line Diag} screen is displayed.

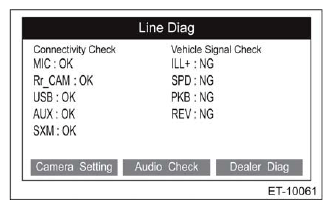

Fig 2: Line Diag Audio System Screen
Courtesy of SUBARU OF AMERICA, INC.
Touch {Dealer Diag} on the {Line Diag} screen.
The {Dealer Diag} screen is displayed.

Fig 3: Display Screen Dealer Diag
Courtesy of SUBARU OF AMERICA, INC.

Touch the {9kHz} or {10kHz} key to switch the AM radio frequency range.

Display key	Frequency range
9 kHz	Set the AM frequency range to 531 - 1629 kHz.
10 kHz	Set the AM frequency range to 530 - 1710 kHz.

NOTE:

When the setting is changed, reboot confirmation for frequency switch-over is displayed. Select {OK} to reboot. When {cancel} is pressed, the {Dealer Diag} screen is displayed.
The initial settings is at 9 kHz.
