External Connection Terminal: Removal
- Disconnect the ground cable from battery. <Ref. to
BATTERY
, NOTE, Note.>NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the console box assembly. <Ref. to REMOVAL , Console Box.>

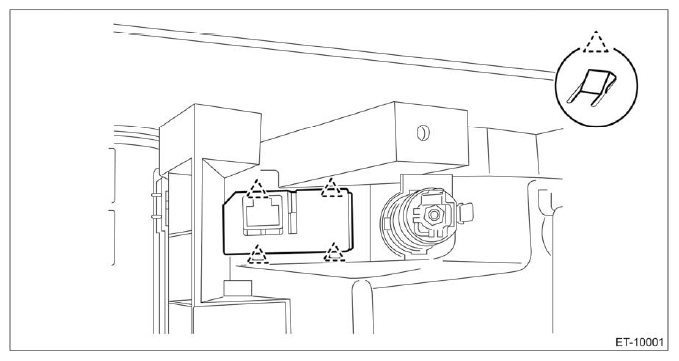

- While pressing the claw, press it in from the rear to remove the unit assembly - AUX.
