Audio And Navigation System

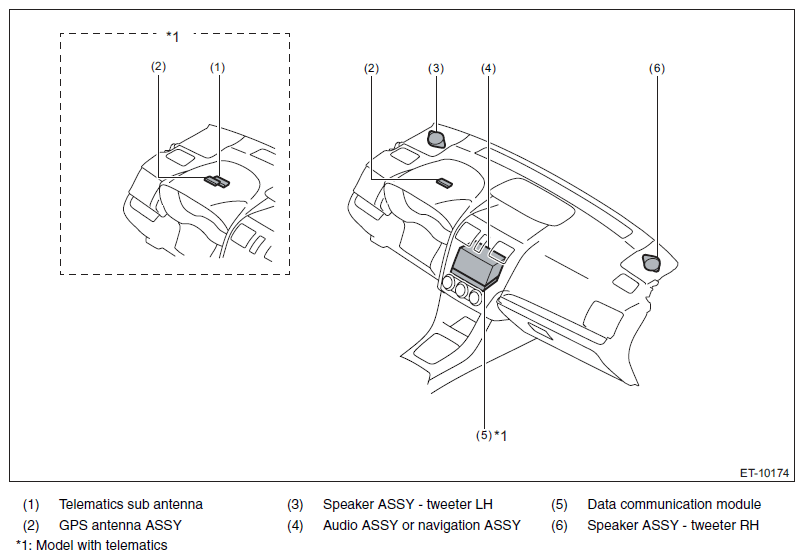

Fig 1: Vehicle Audio And Navigation System Component Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

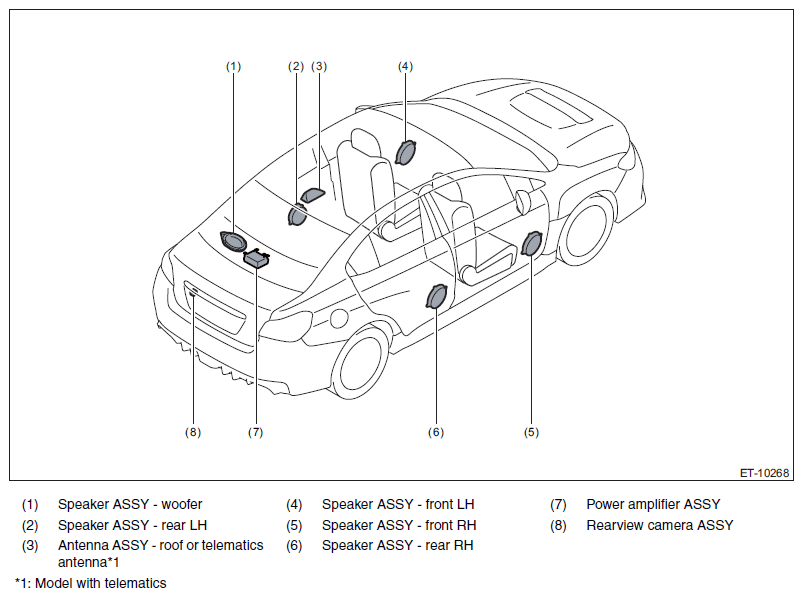

Fig 2: Vehicle Audio And Navigation System Component Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
