Rearview Camera System: Removal

Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the trim panel - trunk lid. <Ref. to REMOVAL , Trunk Room Trim.>
Remove the garnish - trunk. <Ref. to REMOVAL , Trunk Lid Garnish.>
Remove the rearview camera assembly.
CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.
1. Disconnect the connector.
2. Release the claw and hook, and then remove the rearview camera assembly.

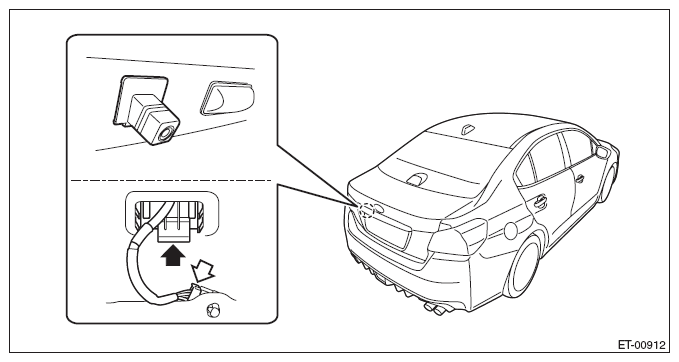

  Fig 1: Locating Claw And Hook Of Rearview Camera Assembly
  Courtesy of SUBARU OF AMERICA, INC.
