Front Door

1. Raise the glass assembly - front door to the top position.
2. Remove the cover - handle front outer.

   Preparation tool:

   TORX® T30

   1. Remove the plug at the rear end of the panel assembly - front door.
   2. Loosen the TORX® bolt and remove the cover - handle front outer.

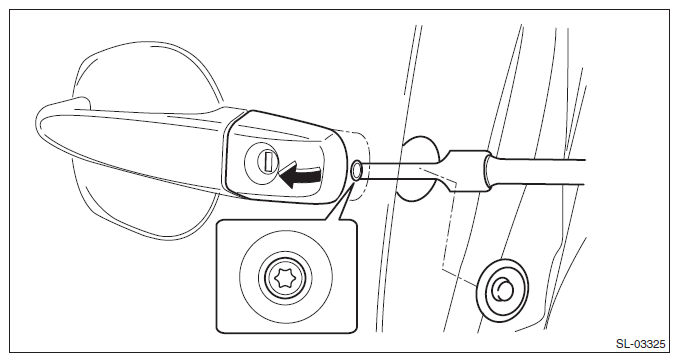

   Fig 1: Removing Handle Front Outer Cover

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the key cylinder (B) from the cover - handle front outer (A), and replace the key cylinder.
   Fig 2: Key Cylinder And Handle Front Outer Cover

   Courtesy of SUBARU OF AMERICA, INC.
4. Install each part in the reverse order of removal.

Tightening torque:

Refer to "COMPONENT" of "General Description". <Ref. to  DOOR LOCK ASSEMBLY  , COMPONENT, General Description.>
