Trunk Opener Button: Removal

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the garnish - trunk. <Ref. to REMOVAL , Trunk Lid Garnish.>
  3. Release the locks at both ends of the trunk opener button by pushing them with a flat tip screwdriver.

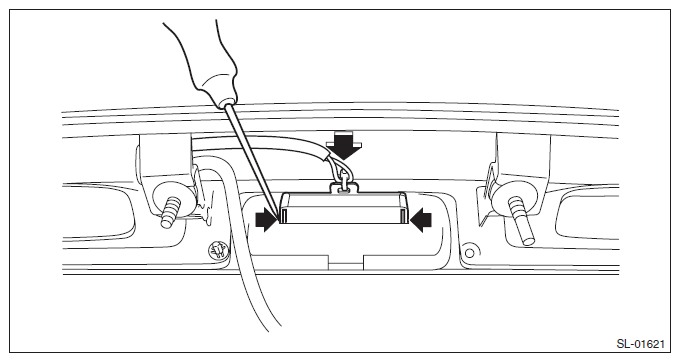

Fig 1: Pushing Trunk Opener Button With Flat Tip Screwdriver
G11582937Courtesy of SUBARU OF AMERICA, INC.
