Front Regulator and Motor Assembly: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - front door. <Ref. to FRONT DOOR , REMOVAL, Door Trim.>
  3. Remove the sealing cover - front door. <Ref. to REMOVAL , Front Sealing Cover.>
  4. Remove the glass assembly - front door. <Ref. to REMOVAL , Front Door Glass.>
  5. Remove the regulator and motor assembly - front.
    1. Disconnect the motor - front connector.
    2. Remove the bolts, and then remove the regulator and motor assembly - front.

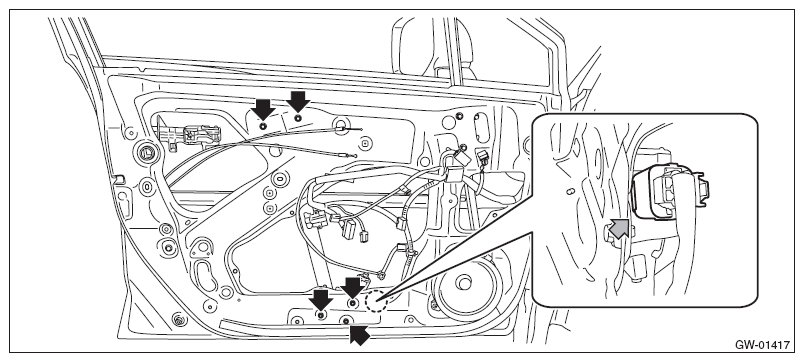

      Fig 1: Locating Front Regulator And Motor Assembly Bolts
      G10270853Courtesy of SUBARU OF AMERICA, INC.
