Front impact sensor

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the air intake duct (rear). (When removing the sensor RH) Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL
  3. Remove the Front impact sensor.
    1. Disconnect the airbag connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>EACH IMPACT SENSOR
    2. Remove the flange bolt, and then remove Front impact sensor.

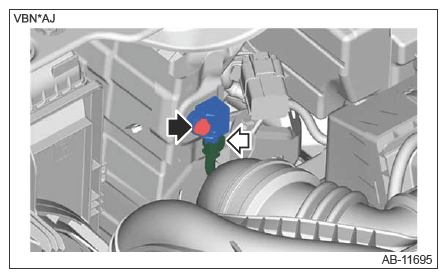

      • RH
        G14612247Courtesy of SUBARU OF AMERICA, INC.

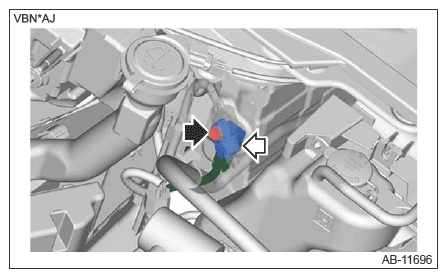

      • LH
        G14612248Courtesy of SUBARU OF AMERICA, INC.
