Passenger's Airbag Module: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  3. Remove the instrument panel assembly. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL ASSEMBLY>REMOVAL
  4. Remove the screws and release the claws, and remove the passenger's airbag module.
    G14612233Courtesy of SUBARU OF AMERICA, INC.

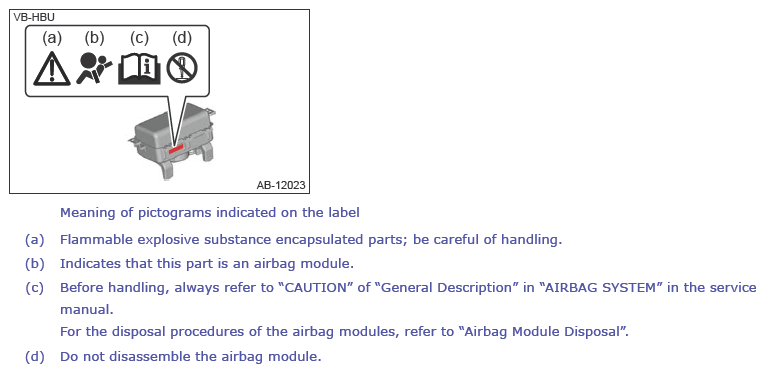

    G14612234Courtesy of SUBARU OF AMERICA, INC.
