Data Monitor: List
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Content/display range | Standard | Note |
|---|---|---|---|
| FL Tire status | Status of the front left transmitter | 00000000 - 11111111 | For details, refer to the Notes in the margin. |
| FR Tire status | Status of the front right transmitter | ||
| RR Tire status | Status of the rear right transmitter | ||
| RL Tire status | Status of the rear left transmitter | ||
| FL Tire air pressure | Value converted to tire pressure from data delivered from transmitter is displayed. (The figure may differ from the actual measured values.) |
0 - 351.645 kPa | - |
| FR Tire air pressure | 0 - 351.645 kPa | - | |
| RR Tire air pressure | 0 - 351.645 kPa | - | |
| RL Tire air pressure | 0 - 351.645 kPa | - | |
| Vehicle Speed | Vehicle speed signal which is input in control module | 0 - 255 km/h | - |
| Pressure warning | Threshold where tire pressure warning light illuminates | 0 - 351.645 kPa | - |
| Return pressure | Threshold where tire pressure warning light goes out | 0 - 351.645 kPa | - |
| Transmitter power supply | Transmitter power supply status | ON MODE/OFF | - |
| INDICATOR LAMP | Status of tire pressure warning light | ON/OFF | - |
| FL Registered ID | ID of the front left transmitter | 0 - FFFFFFFF | - |
| FR Registered ID | ID of the front right transmitter | 0 - FFFFFFFF | |
| RR Registered ID | ID of the rear right transmitter | 0 - FFFFFFFF | |
| RL Registered ID | ID of the rear left transmitter | 0 - FFFFFFFF | |
| Latest reception ID | Second latest reception ID | 0 - FFFFFFFF | |
| Reception ID one ahead | Third latest reception ID | 0 - FFFFFFFF | |
| Before reception ID2 | Fourth latest reception ID | 0 - FFFFFFFF | |
| Before reception ID3 | Fifth latest reception ID | 0 - FFFFFFFF |
NOTE:

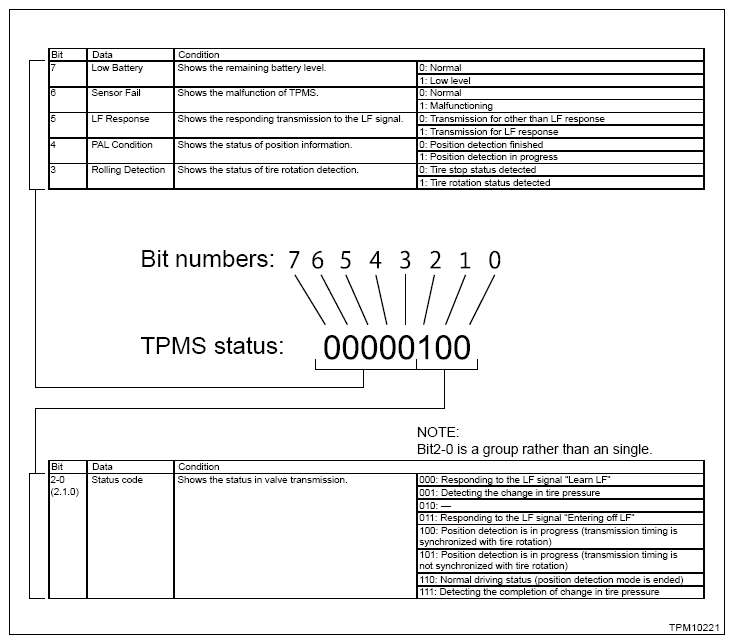

Details of tire status
