Intake Duct: Inspection

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check inside for foreign matter.
  2. Check that there is no deformation, cracks or other damages.
  3. Check for air leaks. Replace the intake duct with a new one if there is damage or air leak.
  4. Check the air passages for clogging.

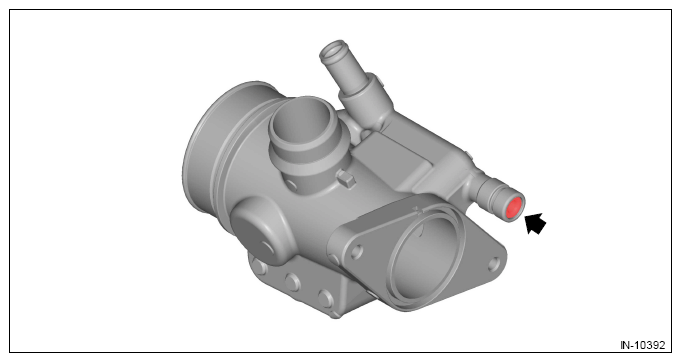

    G13198592Courtesy of SUBARU OF AMERICA, INC.
