Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Release the clips and claws, and then remove the cover assembly rear combination light.
    CAUTION:

    Do not remove the cover forcibly if the cover is not unhooked. Doing so may result in damage of the cover claw or the light assembly rear combination.

    NOTE:

    When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

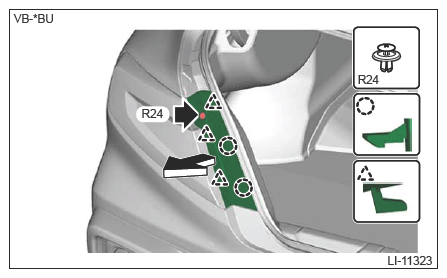

    G14612379Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the light assembly rear combination.
    1. Release the bolts and clips, then pull out the light assembly rear combination toward the rear of the vehicle at an angle as shown in the figure.
      CAUTION:

      Be careful not to damage the clips.

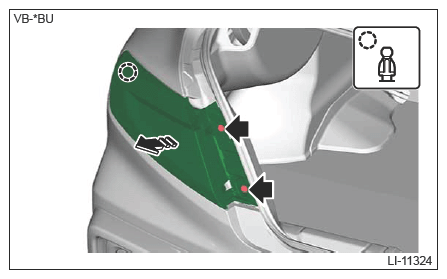

      G14612380Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the light assembly rear combination.
