Spot Map Light: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Do not remove the light assembly map if removing the bulb only.

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY

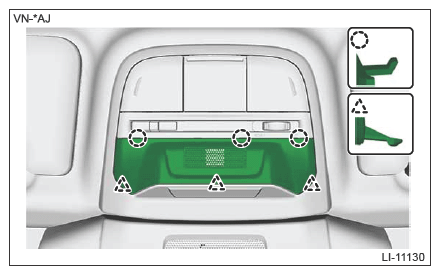

  2. Release the claws, and then remove the cover assembly map light.
    G14612392Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the light assembly map.

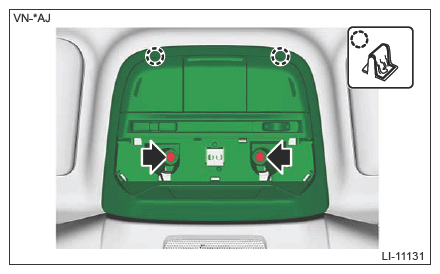

    1. Remove the screws and clips.
      G14612393Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector, and remove the light assembly map.
  4. Remove the map light bulb.
    CAUTION:

    Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

    NOTE:
    • Perform this procedure only when required.
    • When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

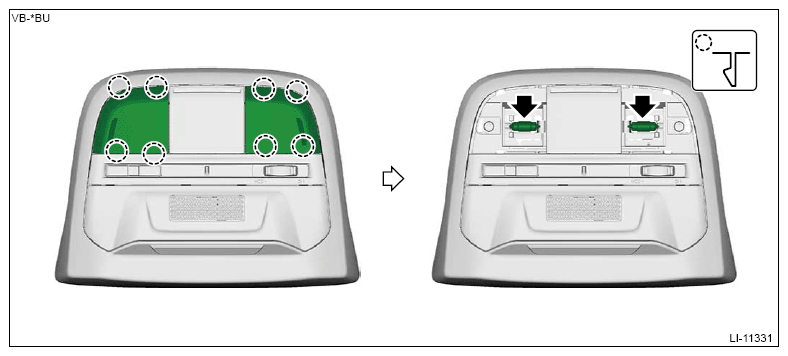

    1. Release the claws and remove the lens.
    2. Remove the map light bulb.
      G14612394Courtesy of SUBARU OF AMERICA, INC.
