Model Without Push Button Ignition Switch

WARNING: This page is about a different variant/trim than selected.

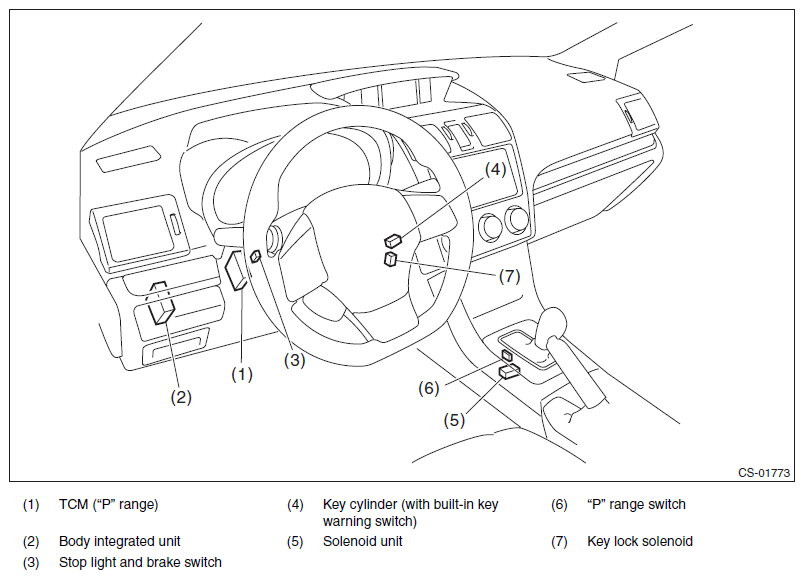

Fig 1: AT Shift Lock Control System Components Location - Model Without Push Button Ignition Switch (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

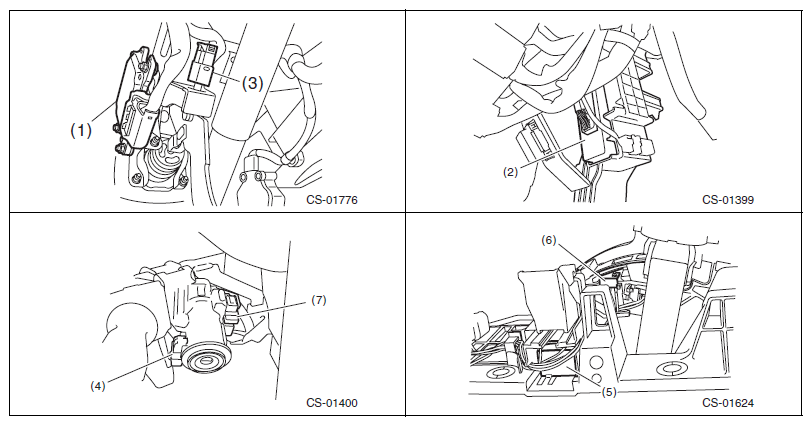

Fig 2: AT Shift Lock Control System Components Location - Model Without Push Button Ignition Switch (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
