Exploded View

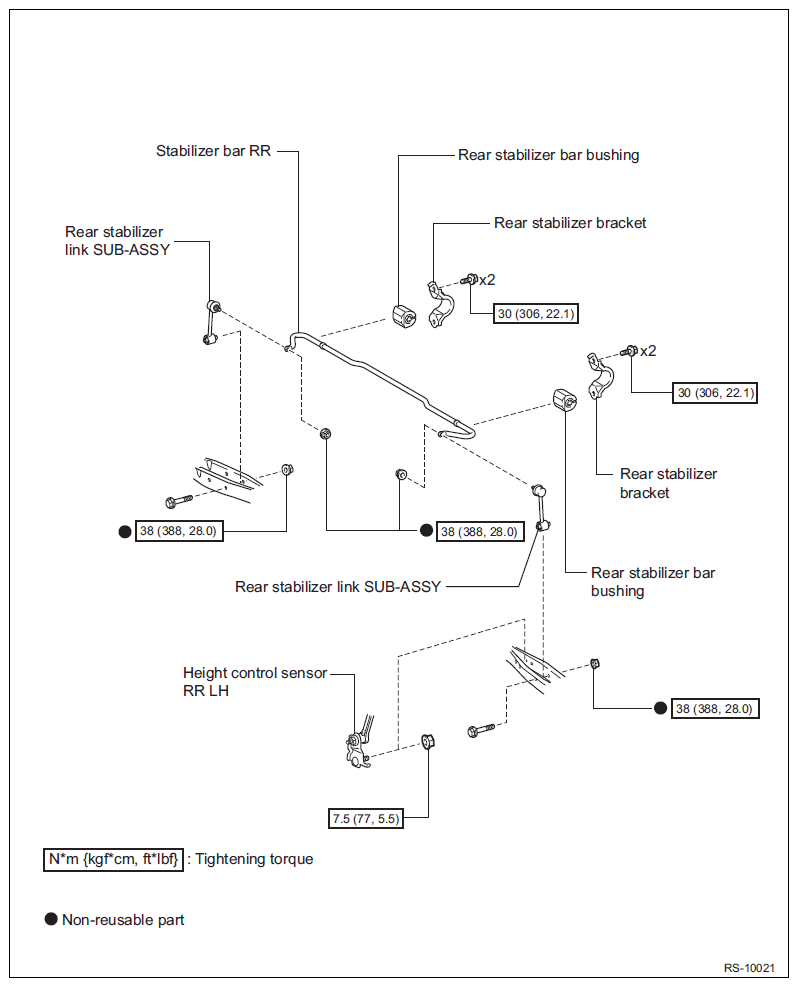

Fig 1: Rear Stabilizer Bar Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
