Circuit Figure

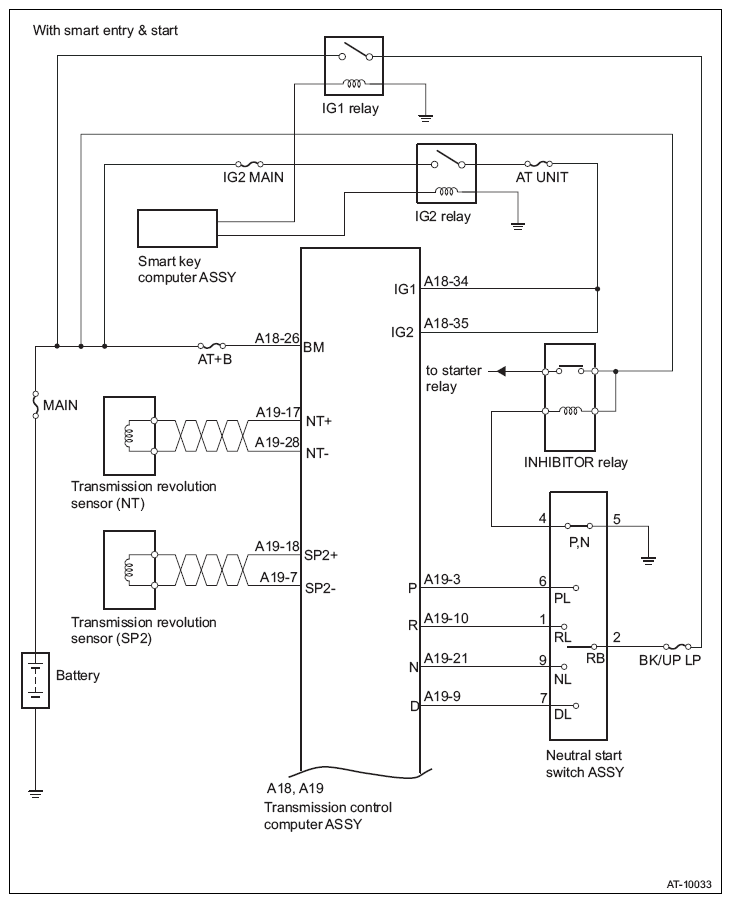

G12587366Courtesy of SUBARU OF AMERICA, INC.

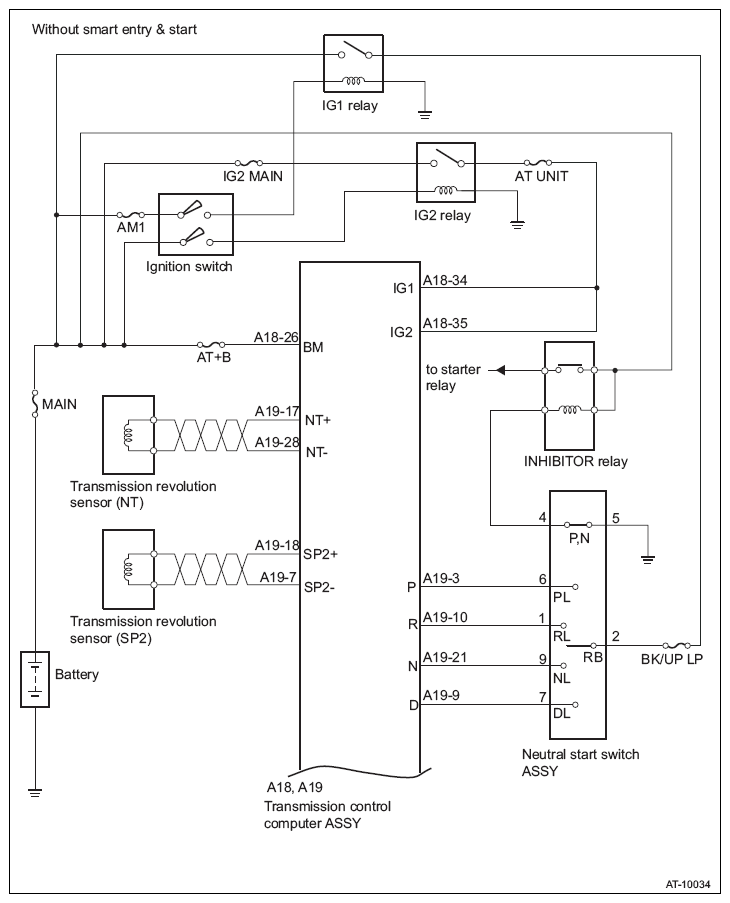

G12587367Courtesy of SUBARU OF AMERICA, INC.

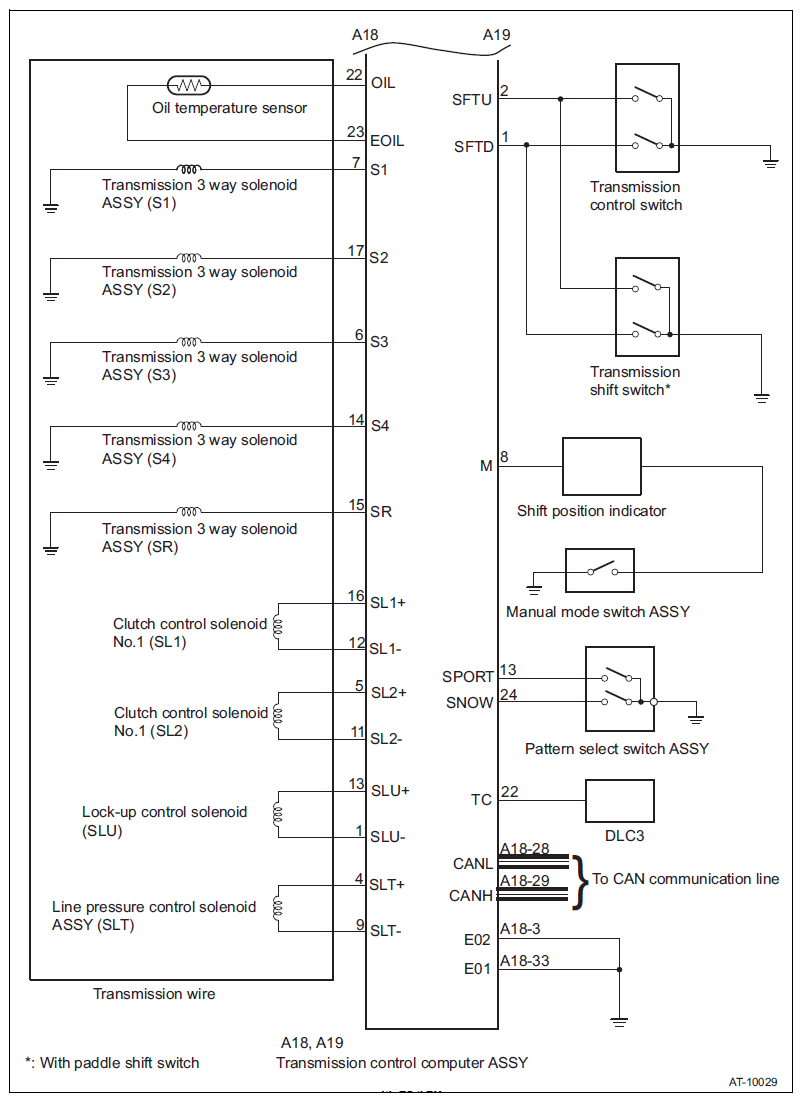

G11259322Courtesy of SUBARU OF AMERICA, INC.
G12587369Courtesy of SUBARU OF AMERICA, INC.
