Power Door Lock Control System
>>

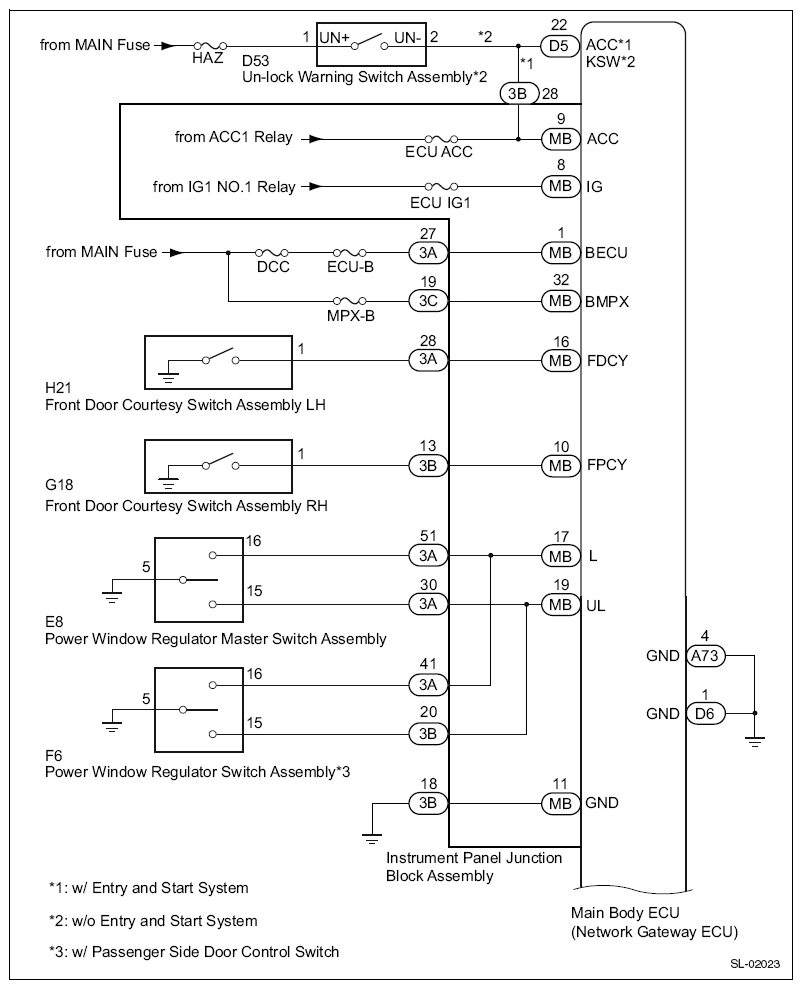

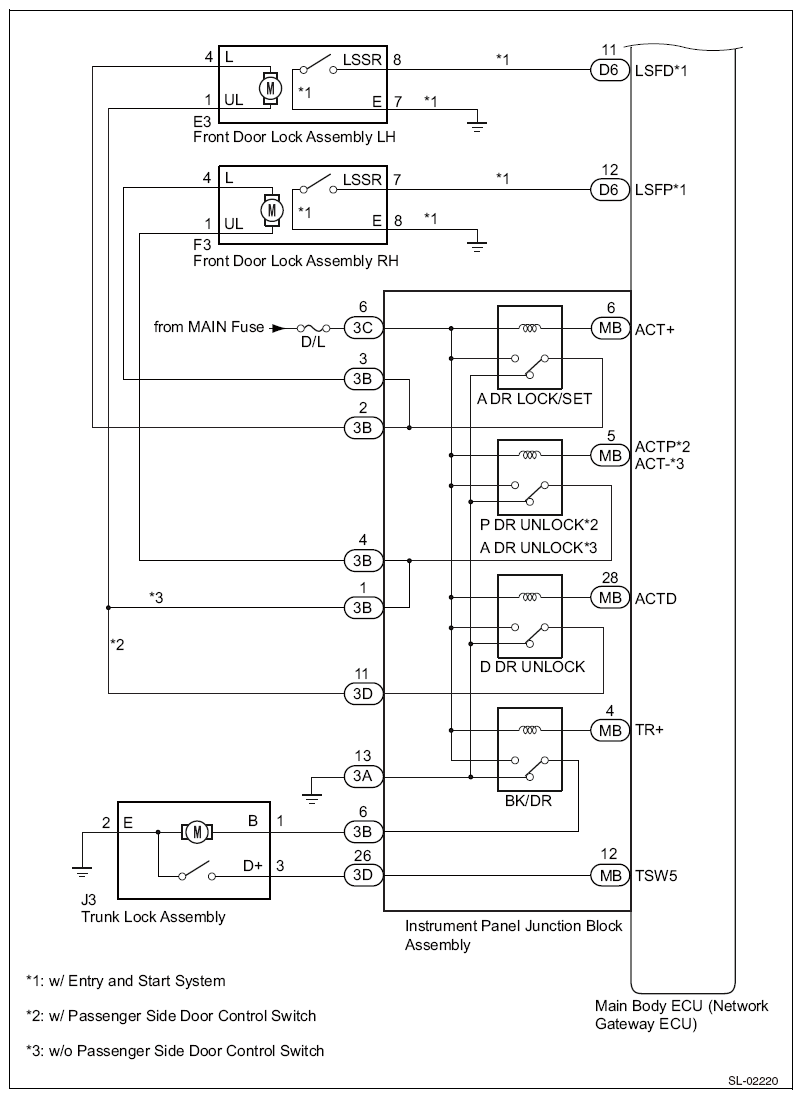

System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
