Front Speed Sensor: Removal

NOTE: The following procedure is for LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.
  1. Removal of front tire
  2. Removal of front mud guard LH (Refer to WASHER MOTOR )
  3. Removal of speed sensor FR LH
    1. Disconnect the connector.
    2. Disconnect 6 clamps.
      G12591009Courtesy of SUBARU OF AMERICA, INC.

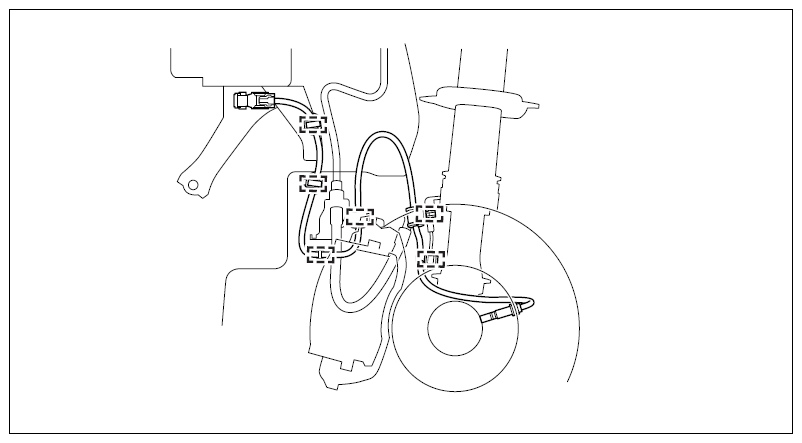

      G12591010Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bolt and the speed sensor FR LH.
      CAUTION: Do not let foreign matter stick to the installation part and the tip of the speed sensor FR LH.
      G12591011Courtesy of SUBARU OF AMERICA, INC.
