Circuit Figure

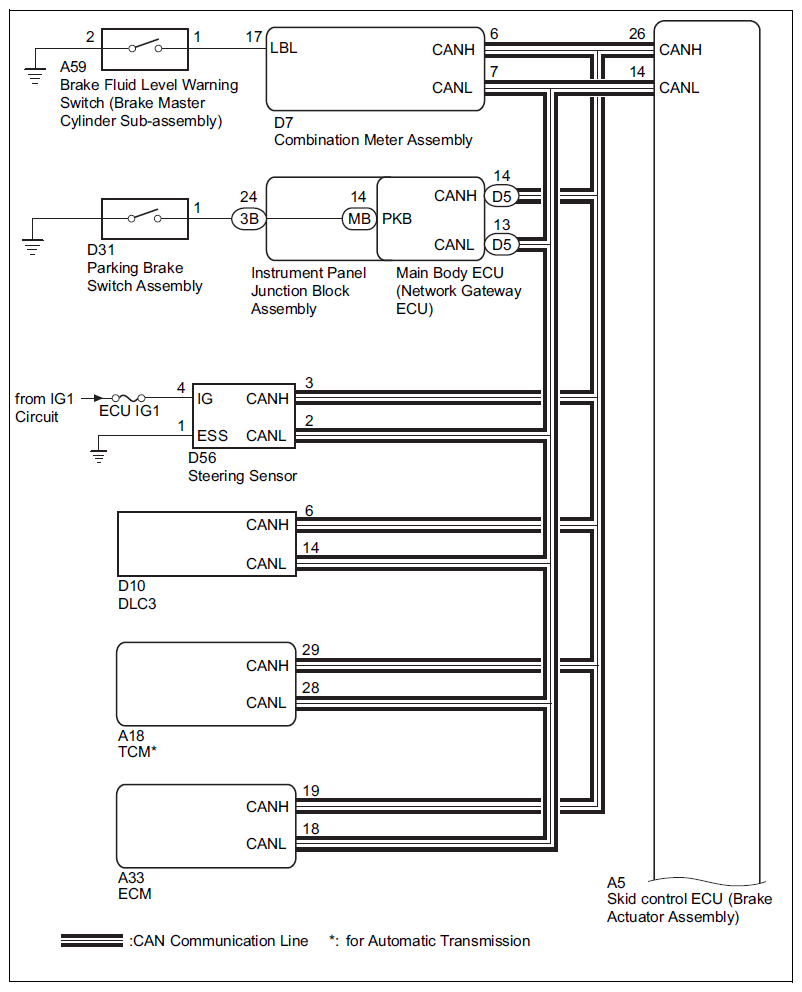

G12590942Courtesy of SUBARU OF AMERICA, INC.

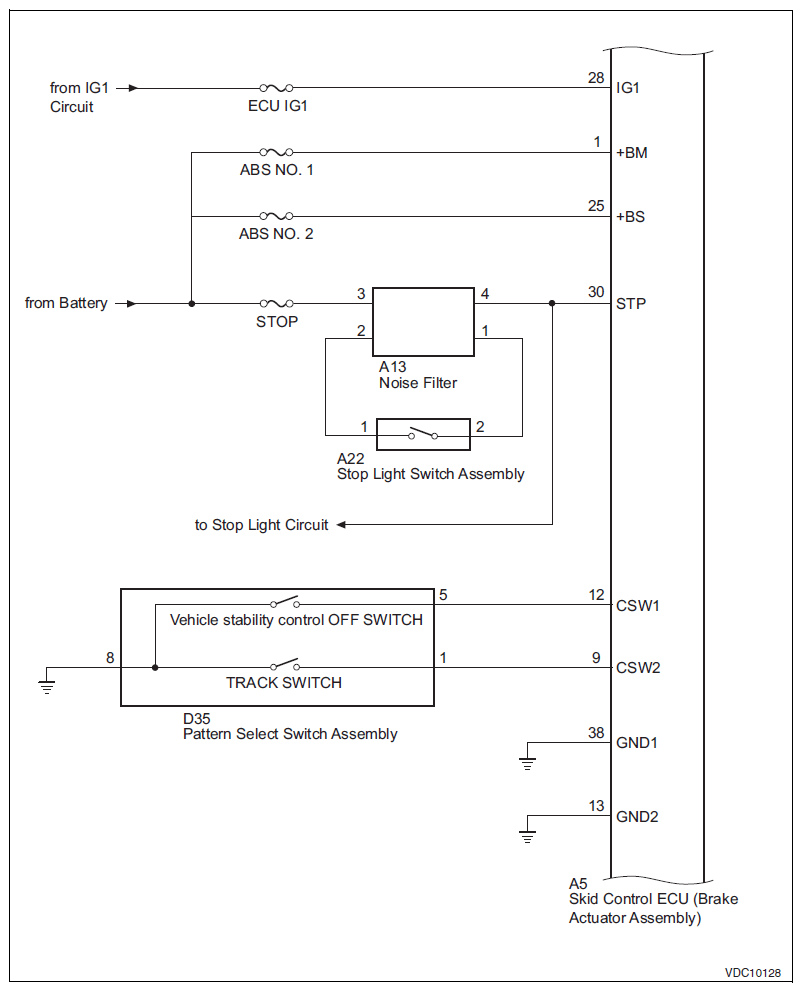

G11260632Courtesy of SUBARU OF AMERICA, INC.

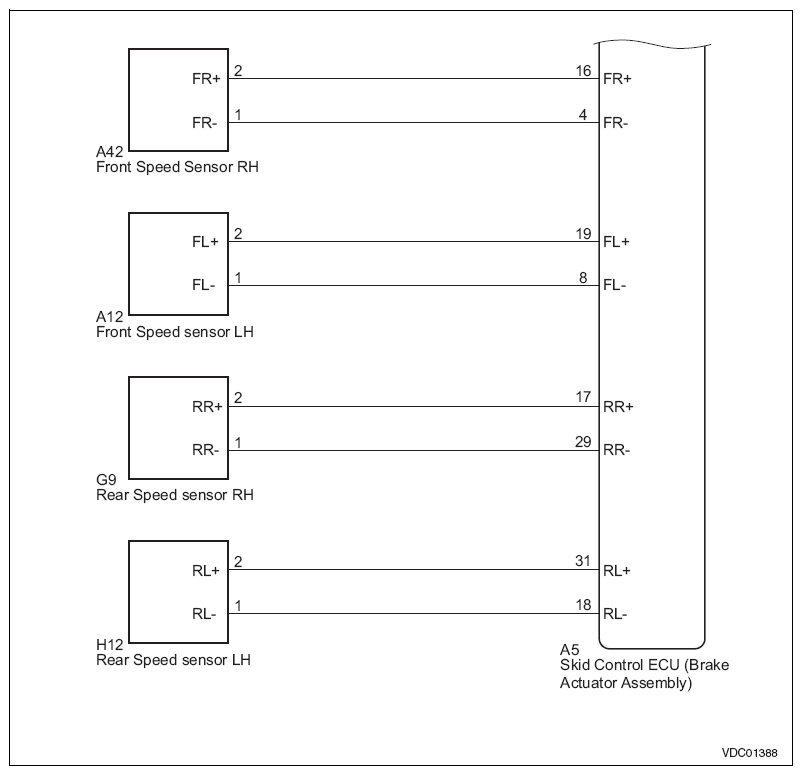

G10215430Courtesy of SUBARU OF AMERICA, INC.
ECM transmission (transmitter) ECM transmission Signal Communication method
Steering sensor Skid control ECM Steering sensor signal CAN CAN communication line
Skid control ECM ECM
  • Wheel speed signal
  • Vehicle stability control data signal
 CAN communication line
ECM Skid control ECM
  • Accelerator opening angle signal
  • Engine speed signal
  • Diagnostic signal
 CAN communication line
TCM Skid control ECM Gear position signal CAN communication line
Skid control ECM Power steering ECM ASSY Vehicle stability control data signal CAN communication line
Main body ECM Skid control ECM Parking brake switch signal CAN communication line
Skid control ECM Combination meter ASSY
  • ABS warning light signal
  • Brake warning light signal
  • TRC OFF indicator light signal
  • Hill start assist ON indicator light signal
  • Vehicle stability control OFF indicator light signal
  • TRACK indicator light signal
  • Slip indicator light signal
  • Wheel speed signal
 CAN communication line
