Subaru
>>
2018
>>
BRZ tS
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Alternator (FA20)
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

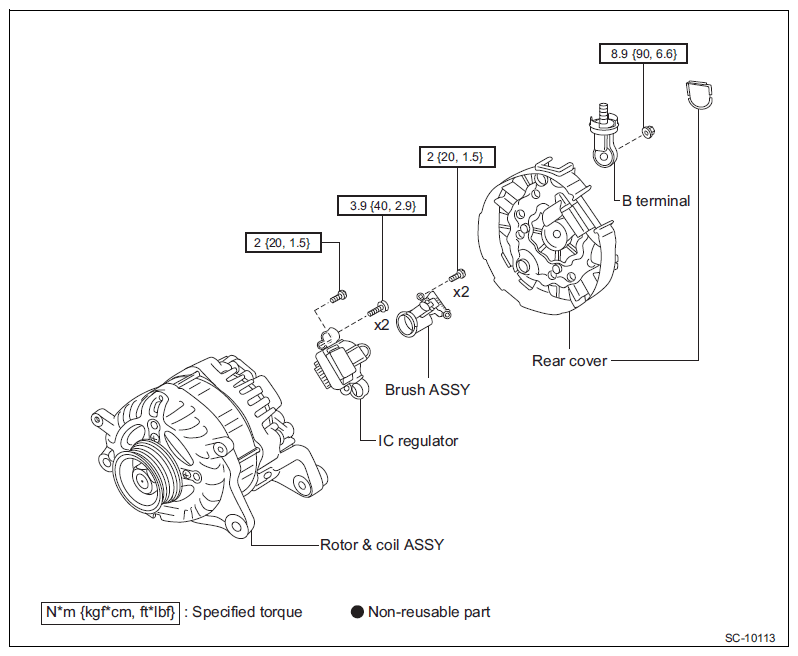

Fig 1: Alternator (FA20) Components With Torque Specification (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

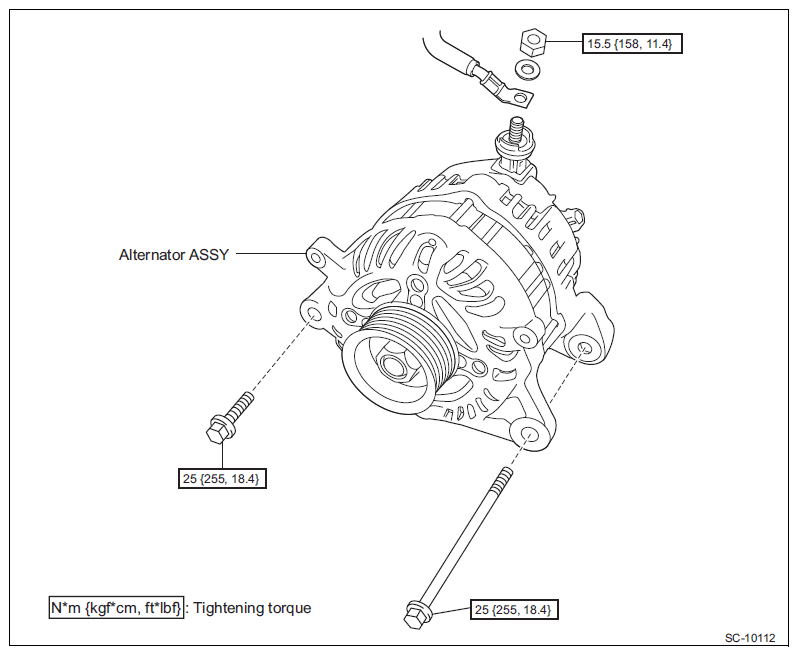

Fig 2: Alternator (FA20) Components With Torque Specification (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
