Exploded View

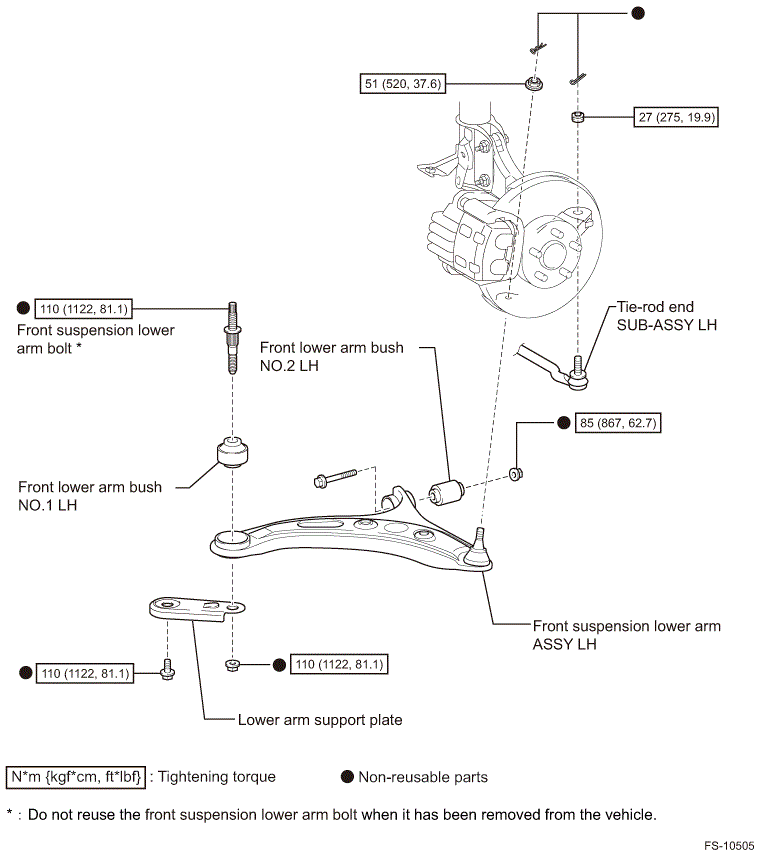

Fig 1: Front Suspension Lower Arm Components With Torque Specification (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Front Suspension Lower Arm Components With Torque Specification (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
