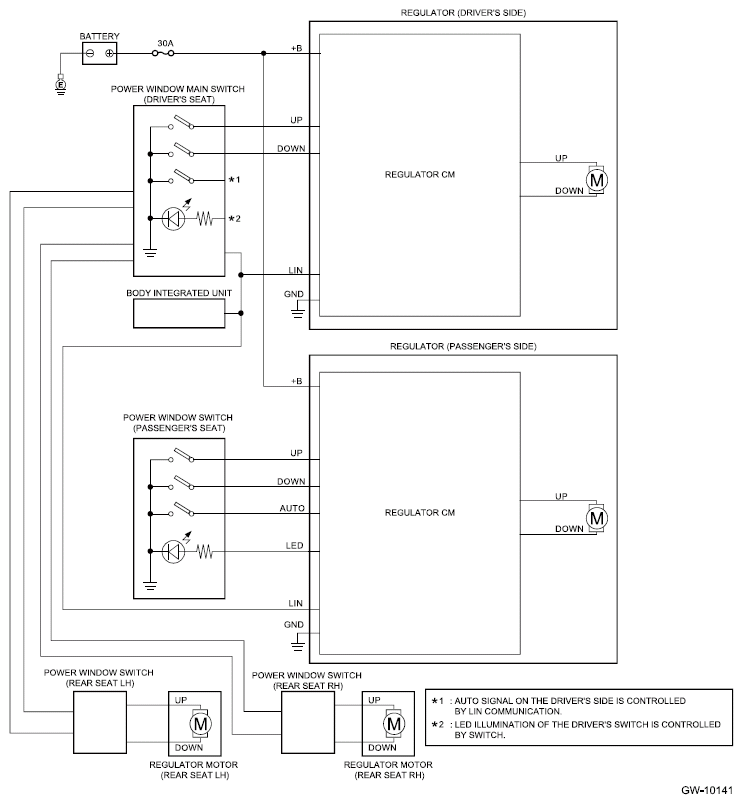

System Block Diagram

The front regulator is equipped with a control module that controls the operational speed. It is connected with the body integrated unit via LIN communication. They are operated by individual switches. Only front windows use PLS signals of motors for reversing and controlling operational speed.

Courtesy of SUBARU OF AMERICA, INC.
