Automatic Transmission Assembly: Installation

  1. Attach the ST to converter case.

    Preparation tool:

    ST: STOPPER SET (498277200)

    G08317729Courtesy of SUBARU OF AMERICA, INC.
  2. When completely overhauling the transmission, refill CVTF through the transmission right side plug. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PREPARATION FOR OVERHAUL .
  3. Replace the front differential side retainer oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Differential Side Retainer Oil Seal>REPLACEMENT .
    NOTE:
    • Be sure to replace the differential side retainer oil seal with a new part whenever the front drive shaft is removed from the transmission.
    • When a new differential side retainer oil seal has been installed, replacement is not required.
  4. Install the rear cushion rubber on the transmission.

    Tightening torque:

    40 N.m (4.1kgf-m, 29.5ft-lb)

    G11255538Courtesy of SUBARU OF AMERICA, INC.
  5. Mount the transmission onto the transmission jack.
  6. Strike and bend the transmission hanger of transmission rear with a rubber hammer etc. so that it gets in contact with the transmission case.
    CAUTION: Do not apply extra overload or impact to the transmission case.
    G08317747Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the pitching stopper bracket, if mounted.
  8. Install the transmission onto the engine.
    NOTE:
    • While raising the transmission jack gradually, turn the screw of engine support, then tilt the engine forward.
    • Temporarily attach the two engine connecting bolts and two nuts (lower side).
  9. Install the transmission rear crossmember.
    • Crosstrek model

      Tightening torque:

      T1: 35 N.m (3.6kgf-m, 25.8ft-lb)

      T2: 70 N.m (7.1kgf-m, 51.6 ft-lb)

    G11255542Courtesy of SUBARU OF AMERICA, INC.
  10. Tighten the two engine connecting bolts and two nuts (lower side).

    Tightening torque:

    50 N.m (5.1kgf-m, 36.9ft-lb)

    G08317742Courtesy of SUBARU OF AMERICA, INC.
  11. Install the exhaust hanger bracket.

    Tightening torque:

    23 N.m (2.3kgf-m, 17.0ft-lb)

    G11255529Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the transmission jack.
  13. Lower the vehicle.
  14. Install the three engine mounting bolts (upper side).

    Tightening torque:

    50 N.m (5.1kgf-m, 36.9ft-lb)

    G08317735Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the ST1 and ST2.

    Preparation tool:

    ST1: ENGINE SUPPORT BRACKET (41099AA012)

    ST2: ENGINE SUPPORT (41099AA020)

    G11255524Courtesy of SUBARU OF AMERICA, INC.
  16. Install the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Control Module (TCM)>INSTALLATION .
  17. Insert the transmission case cover (small) between transmission case cover (large) and transmission to install.
    CAUTION: When inserting, be careful that the insulator inside transmission case cover is not turned over.

    Tightening torque:

    7 N.m (0.7kgf-m, 5.3 ft-lb)

    G11255547Courtesy of SUBARU OF AMERICA, INC.
    G11255523Courtesy of SUBARU OF AMERICA, INC.
  18. Install the torque converter assembly to the drive plate.
    1. Remove the ST from converter case.
      NOTE: Be careful not to drop the ST into the converter case when removing the ST.
      G08316853Courtesy of SUBARU OF AMERICA, INC.
    2. Insert the wrench into the crank pulley bolt, and rotate the crank pulley to install the bolts which hold the torque converter assembly to the drive plate using the ST.
      NOTE:
      • Be careful not to drop bolts into the converter housing.
      • When not using the ST, use a crowfoot wrench for tightening.
      • Use the following formula to calculate the reading of a torque wrench when tightening with a crowfoot wrench.
      Calculation formula
      T= 25 N.m (2.5kgf-m, 18.4ft-lb) x L1/(L1+L2)
      T: Reading of the torque wrench
      L1: Effective length of the torque wrench
      L2: Effective length of the crowfoot wrench
      NOTE: If the effective length of the tool used is unknown, consult the manufacturer of the tool.
      G12393115Courtesy of SUBARU OF AMERICA, INC.

      Preparation tool:

      ST: SOCKET (18270AA050)

      Tightening torque:

      25 N.m (2.5kgf-m, 18.4ft-lb)

      G11253182Courtesy of SUBARU OF AMERICA, INC.
  19. Install the remaining five bolts by rotating the crank pulley a little at a time in the same direction as engine revolution.

    Tightening torque:

    25 N.m (2.5kgf-m, 18.4ft-lb)

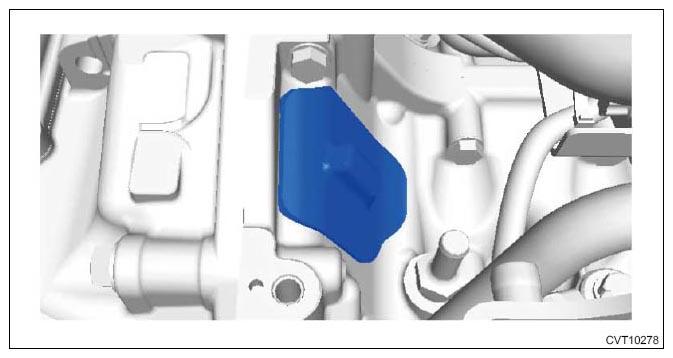

  20. Install the service hole plug.
    G11255516Courtesy of SUBARU OF AMERICA, INC.

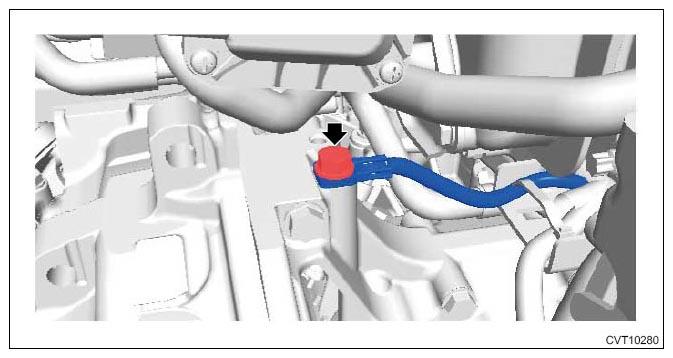

  21. Install the engine ground terminals.

    Tightening torque:

    19 N.m (1.9kgf-m, 14.0ft-lb)

    G11255520Courtesy of SUBARU OF AMERICA, INC.
  22. Replace the CVTF inlet hose and CVTF outlet hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF Cooler (With Warmer Function)>REMOVAL  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF Cooler (With Warmer Function)>INSTALLATION .

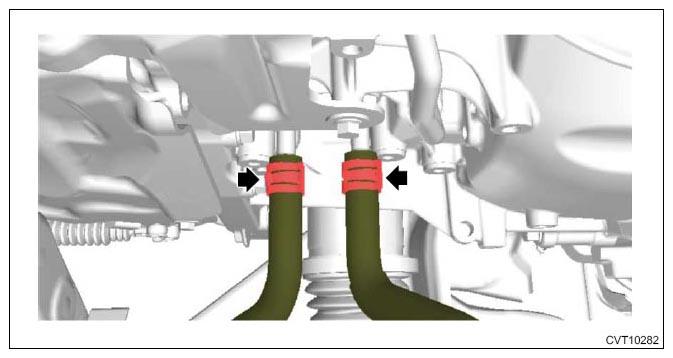

  23. Install the CVTF inlet hose and CVTF outlet hose to transmission.
    G11255522Courtesy of SUBARU OF AMERICA, INC.

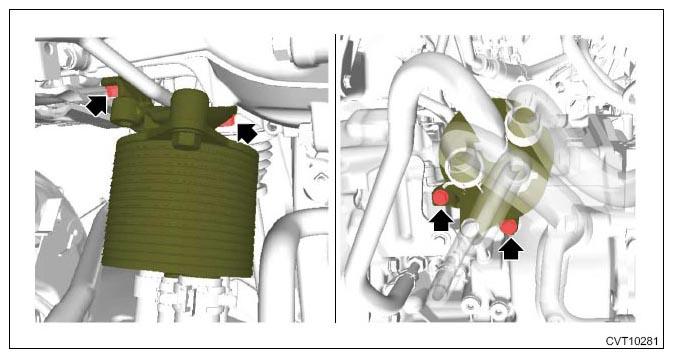

  24. Install the CVTF cooler (with warmer feature) to the transmission.

    Tightening torque:

    23 N.m (2.3kgf-m, 17.0ft-lb)

    G11255521Courtesy of SUBARU OF AMERICA, INC.
  25. Install the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>Starter>INSTALLATION .
  26. Install the engine hanger rear.

    Tightening torque:

    21 N.m (2.1kgf-m, 15.5ft-lb)

    G11255514Courtesy of SUBARU OF AMERICA, INC.
  27. Install the pitching stopper bracket.

    Tightening torque:

    41 N.m (4.2kgf-m, 30.2ft-lb)

    G11255515Courtesy of SUBARU OF AMERICA, INC.

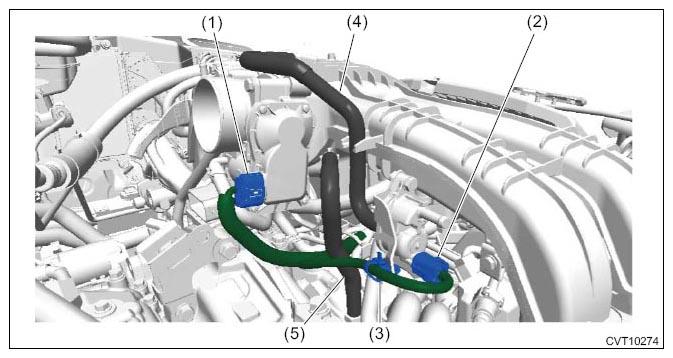

  28. Connect the throttle position sensor harness connector (1), purge control solenoid valve harness connector (2), harness clip (3), vacuum hose (4) and PCV hose (5).
    G11255513Courtesy of SUBARU OF AMERICA, INC.
  29. Install the pitching stopper.

    Tightening torque:

    T1: 50 N.m (5.1kgf-m, 36.9ft-lb)

    T2: 58 N.m (5.9kgf-m, 42.8ft-lb)

    G11255559Courtesy of SUBARU OF AMERICA, INC.
  30. Install the air breather hose and air breather hose bracket.
    G11255511Courtesy of SUBARU OF AMERICA, INC.

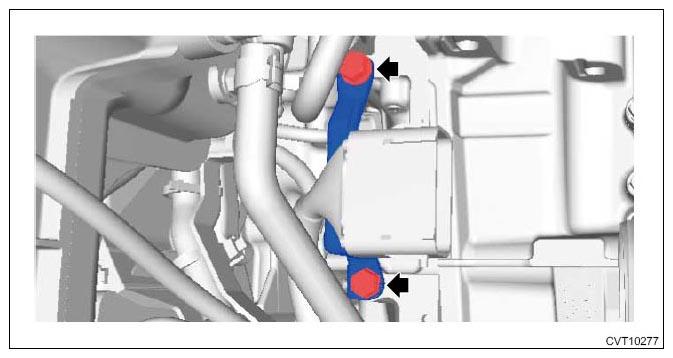

  31. Install the engine harness connector bracket.

    Tightening torque:

    19 N.m (1.9kgf-m, 14 ft-lb)

    G11255519Courtesy of SUBARU OF AMERICA, INC.
  32. Connect the transmission harness connector.
    G11255562Courtesy of SUBARU OF AMERICA, INC.
  33. Lift up the vehicle.
  34. Set the ST to the side retainer.

    Preparation tool:

    ST: OIL SEAL PROTECTOR (28399SA010)

    G08317759Courtesy of SUBARU OF AMERICA, INC.
  35. Replace the circlip of the drive shaft with a new part.
  36. Insert the front drive shaft spline section into transmission and remove the ST (OIL SEAL PROTECTOR).
    NOTE:
    • Before inserting the RH front drive shaft into transmission, turn the steering wheel to the right hand at full lock.
    • Before inserting the LH front drive shaft into transmission, turn the steering wheel to the left hand at full lock.
  37. Insert the drive shaft into the transmission securely by pressing the housing from outside of the vehicle.
    CAUTION:
    • To prevent the front lower arm assembly from damaging the ball joint dust cover, place the ball joint on the upper side of the front lower arm assembly before starting the operation.
    • Be careful not to damage the front lower arm assembly and ball joint by covering the upper side of the front lower arm assembly with a cloth.

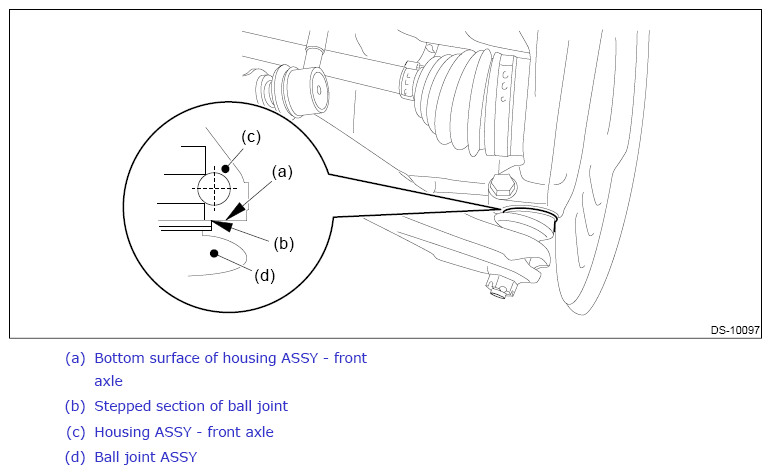

  38. Install the ball joint assembly. (Crosstrek model)
    CAUTION:
    • Before tightening, make sure the bottom surface of the housing assembly - front axle and the stepped section of ball joint are in contact.
    • Be careful not to damage the boot of the joint.

    Tightening torque:

    50 N.m (5.1kgf-m, 36.9ft-lb)

    G12393130Courtesy of SUBARU OF AMERICA, INC.

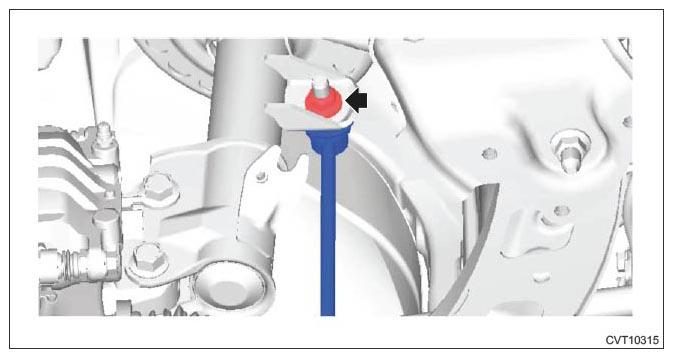

  39. Replace the flange nut with a new part, and install the stabilizer link.

    Tightening torque:

    60 N.m (6.1kgf-m, 44.3ft-lb)

    G11255534Courtesy of SUBARU OF AMERICA, INC.
  40. Install the front ABS wheel speed sensor. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>Front ABS Wheel Speed Sensor>INSTALLATION .

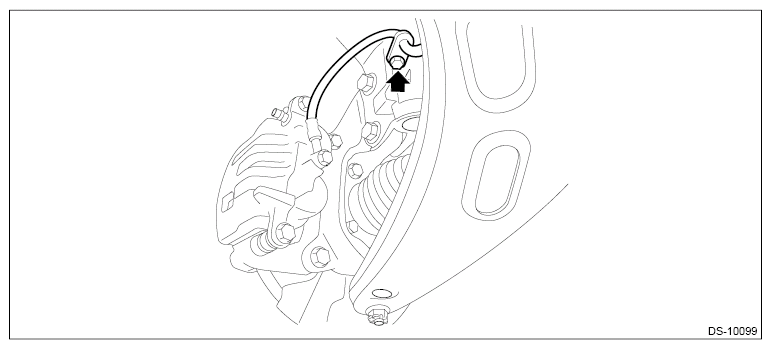

  41. Install the brake hose bracket.

    Tightening torque:

    33 N.m (3.4kgf-m, 24.3 ft-lb)

    • Crosstrek model
      G12392557Courtesy of SUBARU OF AMERICA, INC.
  42. Install the plate assembly to transmission.

    Tightening torque:

    25 N.m (2.5kgf-m, 18.4ft-lb)

    G11255304Courtesy of SUBARU OF AMERICA, INC.

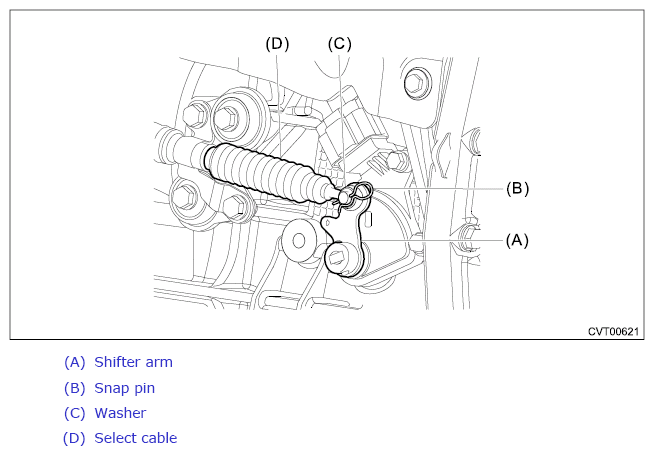

  43. Install the washer and snap pin to the shifter arm.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G12393136Courtesy of SUBARU OF AMERICA, INC.
  44. Install the propeller shaft. Ref. to DRIVE SHAFT SYSTEM>Propeller Shaft>INSTALLATION .
  45. Install the center exhaust cover.

    Tightening torque:

    18 N.m (1.8kgf-m, 13.3ft-lb)

    G12392795Courtesy of SUBARU OF AMERICA, INC.
  46. Install the front exhaust pipe. Ref. to EXHAUST (H4DO)>Front Exhaust Pipe>INSTALLATION .
  47. Install the crossmember support - rear.

    Tightening torque:

    70 N.m (7.1kgf-m, 51.6ft-lb)

    G11255083Courtesy of SUBARU OF AMERICA, INC.
  48. Install the under cover.
  49. Lower the vehicle.
  50. Connect the transmission radio ground terminal.

    Tightening torque:

    32.3 N.m (3.3kgf-m, 23.8ft-lb)

    G11255509Courtesy of SUBARU OF AMERICA, INC.
  51. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
  52. Install the front tires. Ref. to WHEEL AND TIRE SYSTEM>Tire and Wheel>INSTALLATION .
  53. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>SAFETY .
  54. Refill differential gear oil to adjust the differential gear oil amount. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Differential Gear Oil>ADJUSTMENT .
  55. Refill CVTF to adjust the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>ADJUSTMENT .
  56. Using the Subaru Select Monitor, perform «Clear AT learning value» on «Work Support», and perform the operation of AT learning mode. Ref. to TRANSMISSION (DIAGNOSTICS)>LEARNING CONTROL .
  57. Execute the rear differential inspection mode. Ref. to DIFFERENTIALS>REAR DIFFERENTIAL INSPECTION MODE .
    CAUTION: Always execute the rear differential inspection mode at the replacement of the following.
    • Replacement of transmission assembly
    • Replacement of front differential hypoid gear set
  58. Perform the road test to make sure there is no fault. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Road Test>INSPECTION .
