Transmission Control Module (TCM): Removal

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>SAFETY .
Remove the clip from the air intake boot, and loosen the clamp.

Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot, and place it aside so that it does not interfere with the work.
CAUTION: Be careful not to pull out the PCV hose.

Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission radio ground terminal.

Courtesy of SUBARU OF AMERICA, INC.
Remove the pitching stopper.

Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover (small).

Courtesy of SUBARU OF AMERICA, INC.

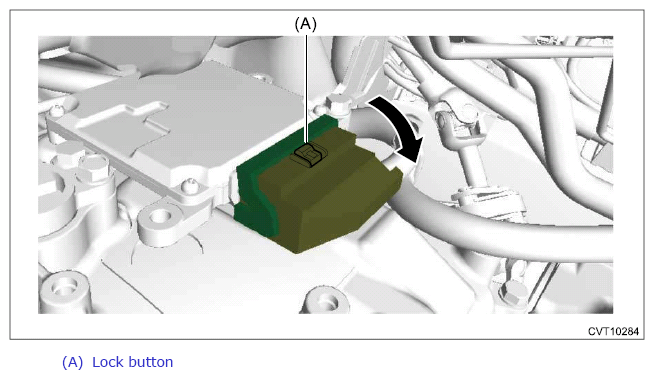

Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

Courtesy of SUBARU OF AMERICA, INC.
Remove the TCM.

Courtesy of SUBARU OF AMERICA, INC.
