Model With 6.2 Inch Display

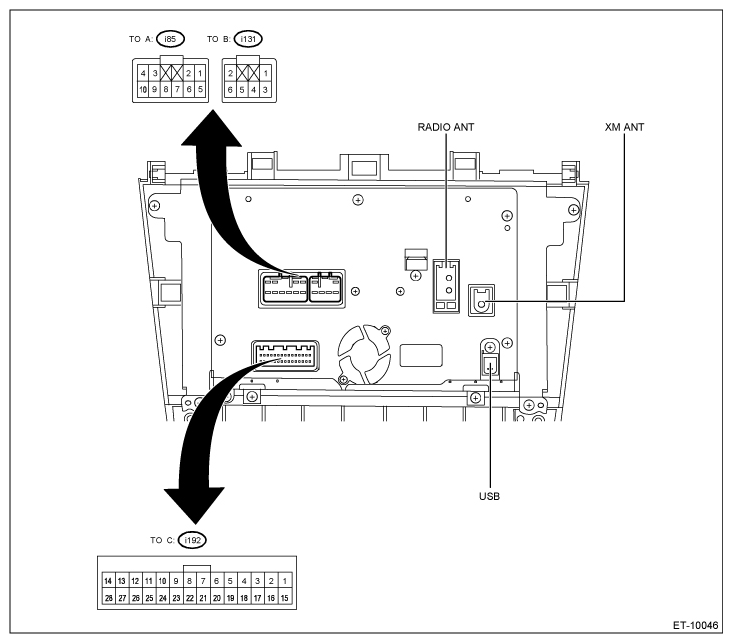

- Power supply and speaker output terminal
Terminal No. Contents Measuring condition Measured value (i85) No. 1 FRONT-RH (+) - - (i85) No. 2 FRONT-LH (+) - - (i85) No. 3 ←→ Chassis ground ACC ACC ON 11 - 15 V (i85) No. 4 ←→ Chassis ground +B Always 11 - 15 V (i85) No. 5 FRONT-RH (-) - - (i85) No. 6 FRONT-LH (-) - - (i85) No. 7 ←→ Chassis ground GND Always 0 V (i85) No. 8 ANTENNA-ON - - (i85) No. 9 N.C. - - (i85) No. 10 ILLUMI (+) - - (i131) No. 1 REAR-RH (+) - - (i131) No. 2 REAR-LH (+) - - (i131) No. 3 REAR-RH (-) - - (i131) No. 4 N.C. - - (i131) No. 5 ILLUMI (-) - - (i131) No. 6 REAR-LH (-) - - - Satellite switch and AUX input terminal for microphone, etc.
Terminal No. Contents Measuring condition Measured value (i192) No. 1 N.C. - - (i192) No. 2 {REV} - - (i192) No. 3 BRIGHT - - (i192) No. 4 MACC+B - - (i192) No. 5 MIC (+) - - (i192) No. 6 MIC-DET - - (i192) No. 7 N.C. - - (i192) No. 8 N.C. - - (i192) No. 9 N.C. - - (i192) No. 10 N.C. - - (i192) No. 11 CAM + 6V - - (i192) No. 12 CV (+) - - (i192) No. 13 CV (-) (SHIELD) - - (i192) No. 14 SHIELD-GND (AUX) - - (i192) No. 15 ←→ Chassis ground {PKB} At parking ON 1 V or less (i192) No. 16 N.C. - - (i192) No. 17 ←→ Chassis ground {SPD} When the tire is rotating Pulse signal (i192) No. 18 SHIELD-GND (MIC) - - (i192) No. 19 MIC (-) - - (i192) No. 20 GND (CAMERA) - - (i192) No. 21 SW1 - - (i192) No. 22 SW2 - - (i192) No. 23 SWG - - (i192) No. 24 N.C. - - (i192) No. 25 AUX-ON - - (i192) No. 26 AUX-R (+) - - (i192) No. 27 AUX-LR (-) - - (i192) No. 28 AUX-L (+) - -
