Electric Power Steering Control Module

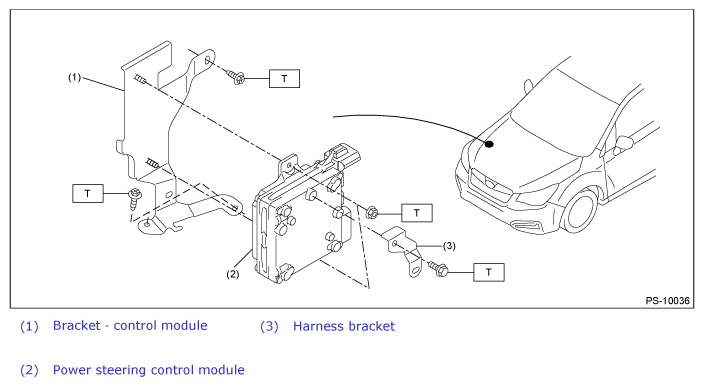

Fig 1: Electric Power Steering Control Module Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.76, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
