Rear Wheel Toe-In

When adjusting, adjust it to the following value.

Toe-in: Adjustment value

0±2 mm (0±0.08 in)

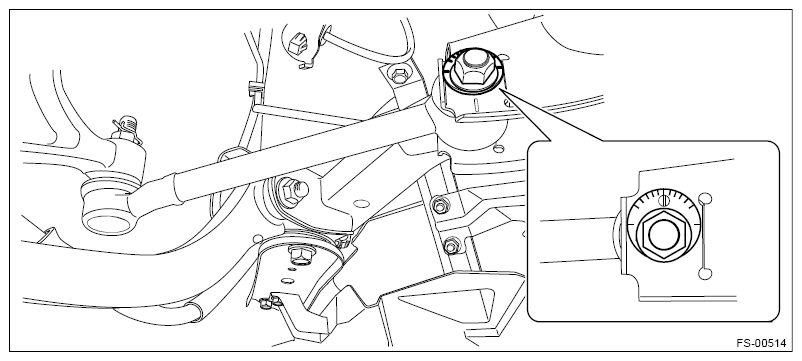

1. Loosen the self-locking nut for the lateral link assembly - front.
   NOTE: When loosening or tightening the adjusting bolt, hold the bolt head and turn the self-locking nut.

   Courtesy of SUBARU OF AMERICA, INC.

2. Turn the adjusting bolt until toe-in is within the specification.
   NOTE: When the toe-in of left and right wheels are adjusted at the same time, one graduation of the scale changes toe-in by approx. 6.0 mm (0.24 in).

   To increase toe-in.
   Rotate the left side clockwise.	Rotate the right side counterclockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

   To decrease toe-in.
   Rotate the left side counterclockwise.	Rotate the right side clockwise.
   Courtesy of SUBARU OF AMERICA, INC.	Courtesy of SUBARU OF AMERICA, INC.

3. Attach and tighten a new self-locking nut.

   Tightening torque:

   100 N.m (10.20 kgf-m, 73.8 ft-lb)
