Air Intake Boot: Installation
WARNING: This page is about a different variant/trim than selected.

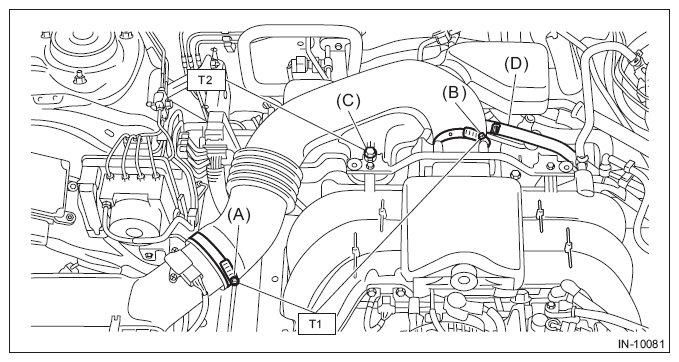

- Install the air intake boot and connect the blow-by hose (D) to the air intake boot.
- Tighten the clamp (B) securing the throttle body to the air intake boot.
- Tighten the bolt (C) securing the air intake boot to the collector cover bracket.
- Tighten the clamp (A) securing the air cleaner case (rear) to the air intake boot.
Tightening torque:
T1: 3 N.m (0.3 kgf-m, 2.2 ft-lb)
T2: 6.5 N.m (0.7 kgf-m, 4.8 ft-lb)
- Install the collector cover.
