Front Seat

Manual Seat LH

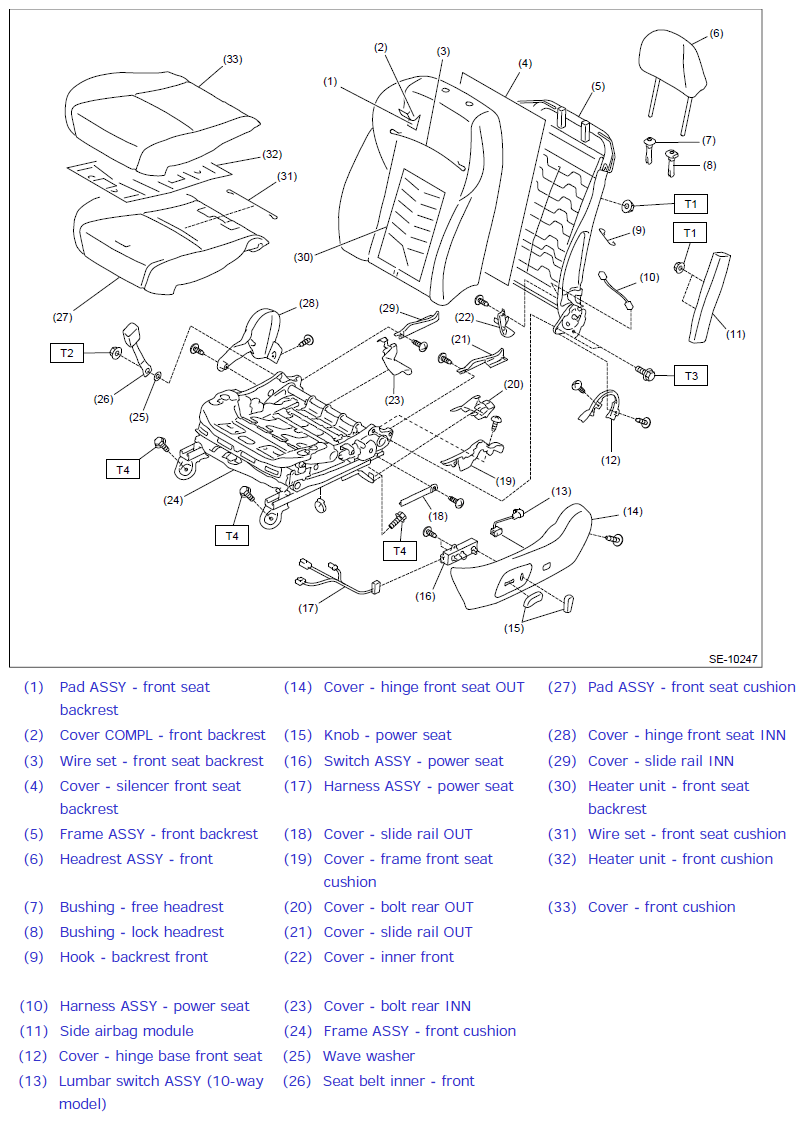

Fig 1: Front Seat (Manual Seat LH) Components
Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 15 (1.5, 11.1)

T3: 38 (3.9, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)
Manual Seat RH

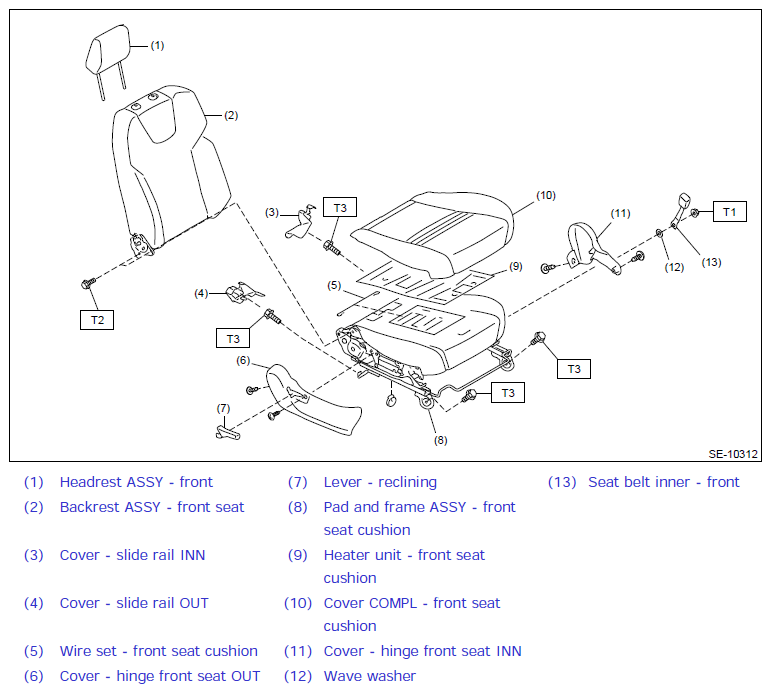

Fig 2: Front Seat (Manual Seat LH) Components
Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 15 (1.5, 11.1)

T3: 38 (3.9, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)

NOTE: Passenger's seat cannot be disassembled because it is seat cushion pad & frame assembly.
Power seat

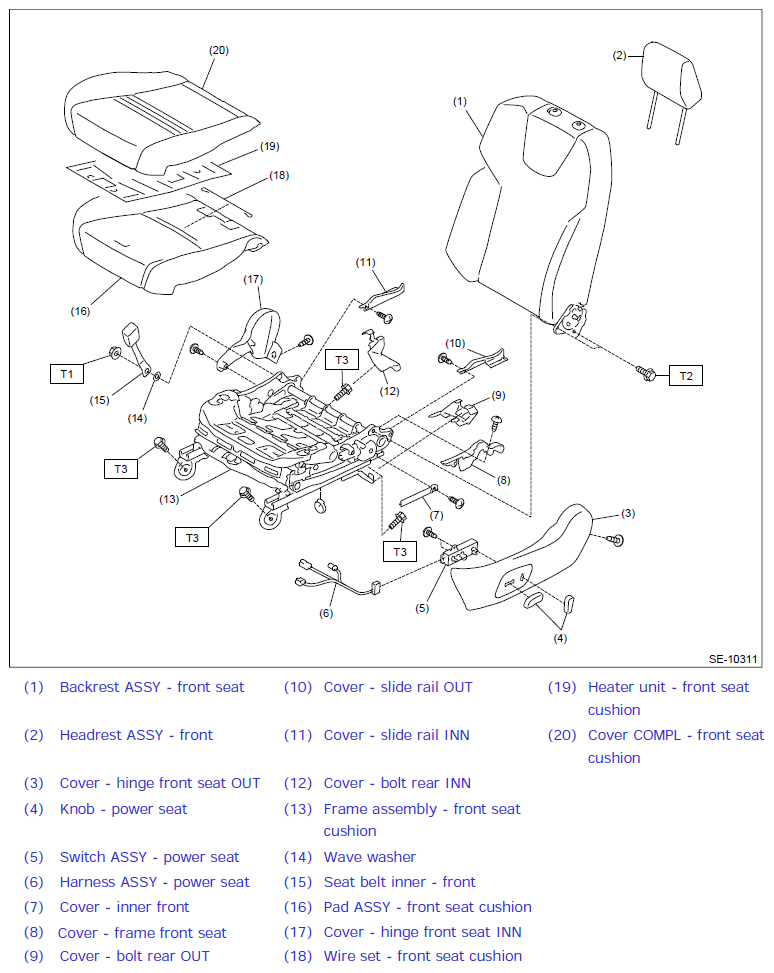

Fig 3: Front Seat (Power Seat) Components
Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)
RECARO® seat LH

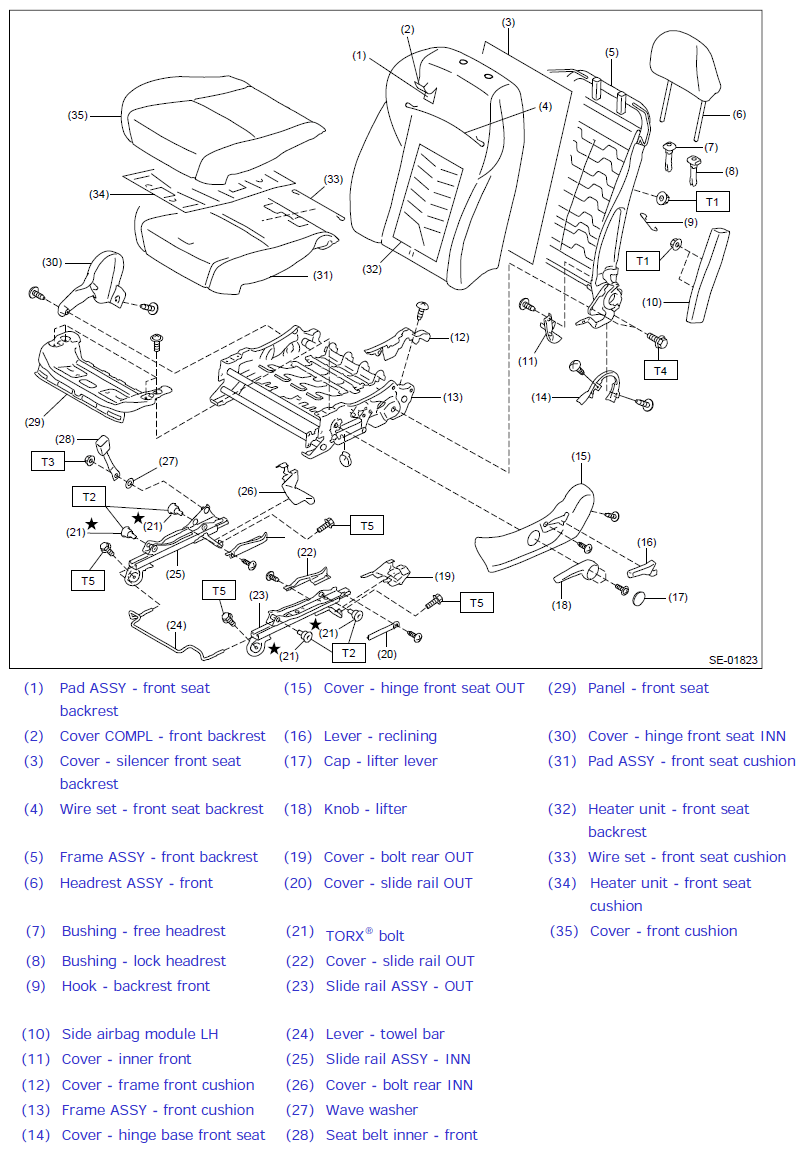

Fig 4: Front Seat (Recaro® Seat LH) Components
Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28)

T2: 52 (5.3, 38.4)

T3: 53 (5.4, 39.1)

NOTE: Since the Back-Rest of the RECARO® seat is a Back-Rest assembly, it cannot be disassembled.
RECARO® seat RH

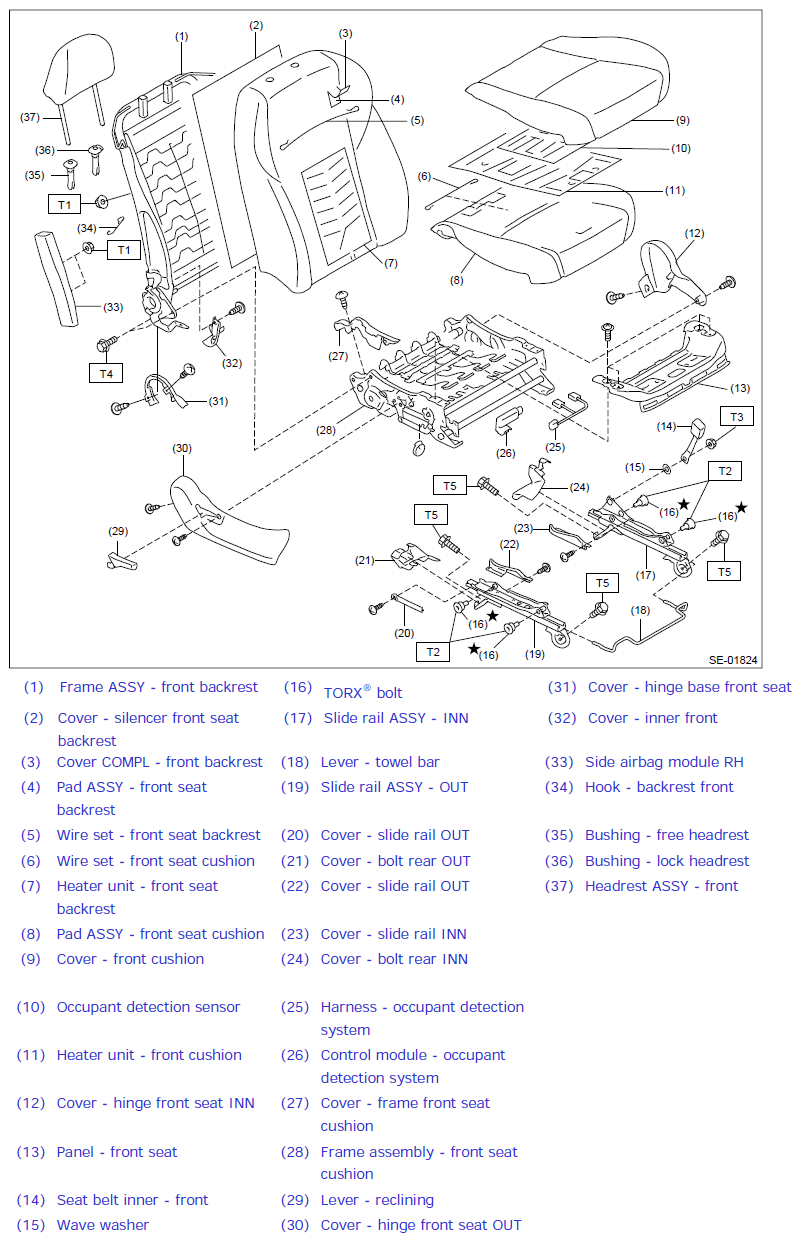

Fig 5: Front Seat (Recaro® Seat RH) Components
Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28)

T2: 52 (5.3, 38.4)

T3: 53 (5.4, 39.1)

NOTE: Since the Back-Rest of the RECARO® seat is a Back-Rest assembly, it cannot be disassembled.
