When Not Removing Front CROSSMEMBER

  1. Remove the striker - front hood. Ref. to EXTERIOR BODY PANELS>Front Hood>DISASSEMBLY .
  2. Fully open the front hood. Ref. to NOTE>FRONT HOOD DAMPER STAY .
  3. Remove the collector cover. Ref. to INTAKE (INDUCTION) (EXCEPT FOR STI)>Collector Cover>REMOVAL .
  4. Disconnect the ground terminal from battery sensor. Ref. to NOTE>BATTERY .
  5. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (EXCEPT FOR STI)>Air Intake Duct>REMOVAL .
  6. Remove the clip (A) and clip (B) which secure the engine wiring harness and bulkhead harness to the bracket, and remove the bolt which secures the engine control module (ECM) to the bracket.
    G10266252
  7. Pull out the engine control module (ECM) from the bracket, and move it to a location that does not interfere operation.
    NOTE: When performing the pulling out operation, pay attention not to apply excessive load to the breather filter portion (a) in order to avoid the damage.
    G10266253
  8. Drain engine coolant. Ref. to COOLING (EXCEPT FOR STI)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  9. Drain the engine oil. Ref. to LUBRICATION (EXCEPT FOR STI)>Engine Oil>REPLACEMENT .
  10. Remove the front exhaust pipe. Ref. to EXHAUST (EXCEPT FOR STI)>Front Exhaust Pipe>REMOVAL .

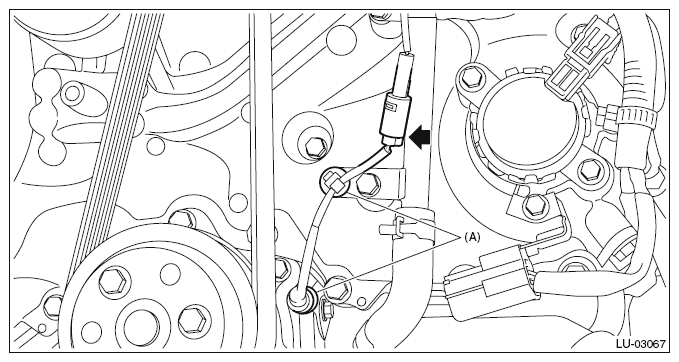

  11. Disconnect the oil level switch connector from the engine wiring harness, and remove the clip (A) securing the harness.
    G09476614

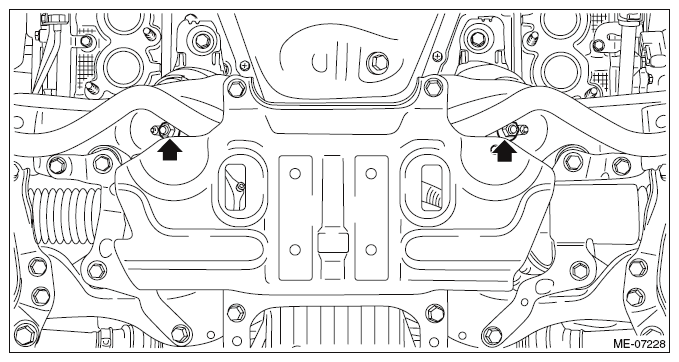

  12. Remove the nuts which secure the engine mounting to the front crossmember.
    G09476522
  13. Remove the electric power steering gearbox. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Electric Power Steering Gearbox>REMOVAL .
  14. Remove the front drive shaft LH. Ref. to DRIVE SHAFT SYSTEM>Front Drive Shaft>REMOVAL .
  15. Lower the vehicle.
  16. Remove the intercooler. Ref. to INTAKE (INDUCTION) (EXCEPT FOR STI)>Intercooler>REMOVAL .
  17. Disconnect the connector (A) from the brake vacuum pump.

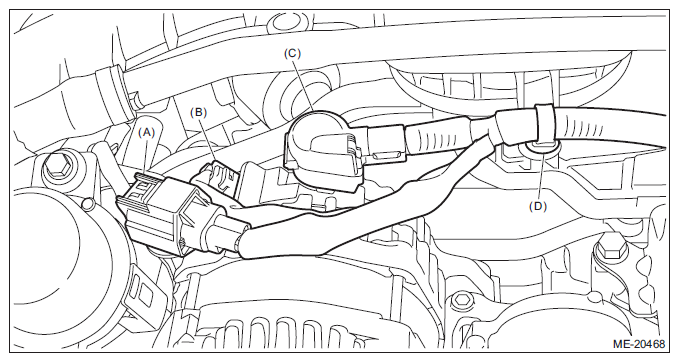

  18. Disconnect connector (B) and terminal (C) from the generator, and remove the clip (D) securing the generator cord to the intake manifold.
    G11576193

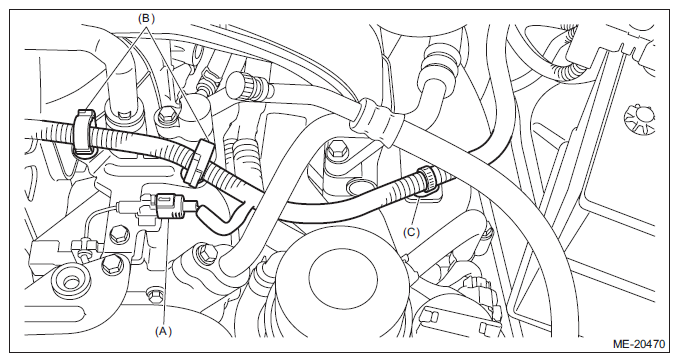

  19. Disconnect connector (A) from A/C compressor, and remove the generator cord from clip (B).
  20. Remove the clip (C) securing the generator cord to the fuel pipe protector, and move the generator cord aside so that it does not interfere with the work.
    G11576238

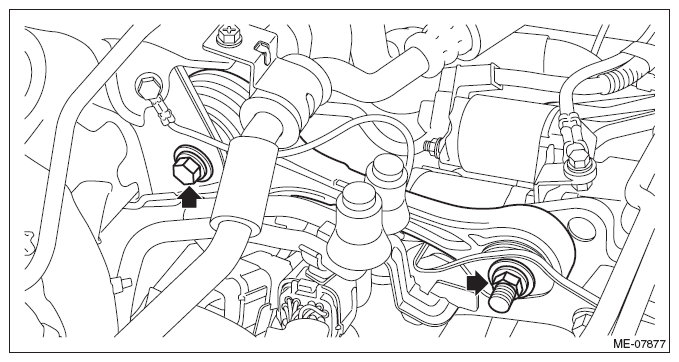

  21. Remove the pitching stopper.
    G10266670
  22. Lift up the vehicle. (CVT model)
  23. Set the transmission jack to the transmission. (CVT Model)
    NOTE: Be careful that the support plate of transmission jack does not touch the transmission oil pan.

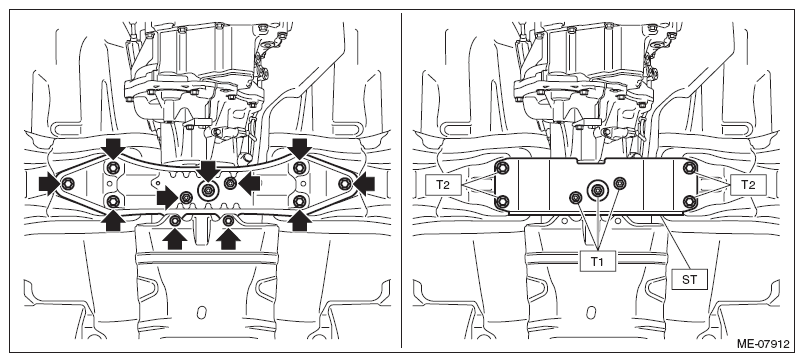

  24. Remove the rear crossmember and attach the ST. (CVT model)

    ST 41099YC001 ST REAR MOUNT

    Tightening Torque:

    T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

    T2: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

    G10266671
  25. Remove the transmission jack. (CVT model)
  26. Lower the vehicle. (CVT model)

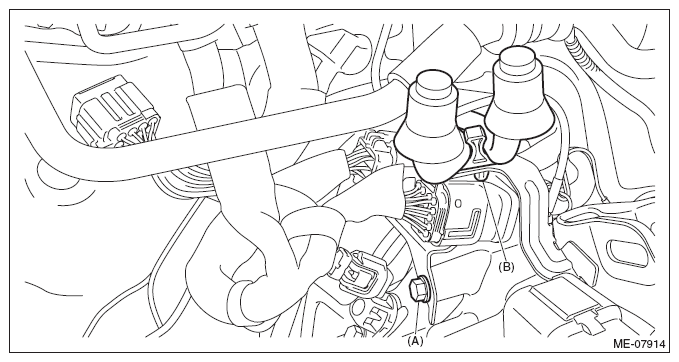

  27. Remove the bolt (A) securing the transmission harness stay to the CVT. (CVT model)
    NOTE: This procedure is required to prevent the transmission connector from touching the A/C pressure hose during engine lift-up.
  28. Remove the air breather hose from the clip (B), and then remove the clip (B) from the pitching stopper bracket. (CVT model)
    NOTE: This procedure is required to prevent the clip from touching the A/C pressure hose during engine lift-up.
    G10266681
  29. Lift up the engine with a lifting device and wire ropes.
    CAUTION: When lifting up the engine, pay attention to the clearance of each part and be careful not to lift the engine too much, in order to prevent damaging the vehicle.
    G08316851

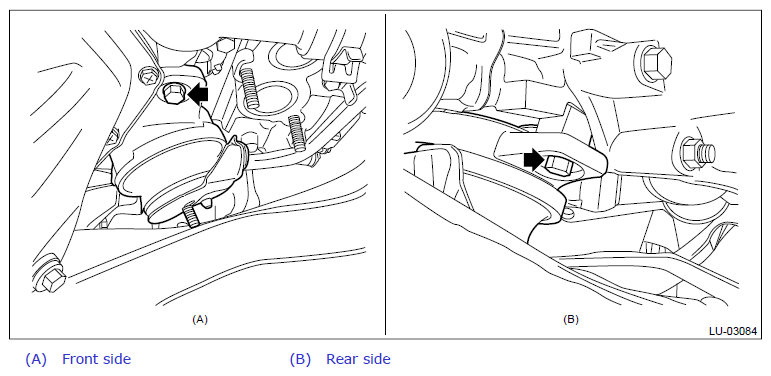

  30. Remove the engine mounting LH from the engine.
    G12442989
  31. Remove clip (A) from the oil pan upper, and remove the oil level switch.
    G09476529
