Oil Pressure Switch: Installation

Apply liquid gasket to the oil pressure switch threads.
Liquid Gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent
Install the oil pressure switch to the chain cover.
Tightening Torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Connect the terminal to the oil pressure switch.

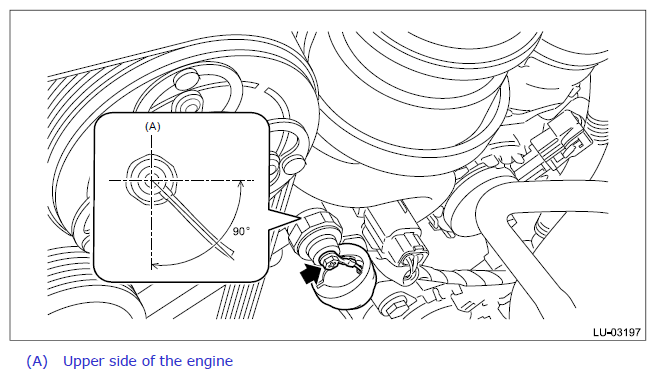

NOTE: The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening Torque:

1.5 N.m (0.2 kgf-m, 1.1 ft-lb)
Attach the rubber cap.
Connect the ground terminal to battery sensor. Ref. to NOTE>BATTERY .
