Clutch Disc And Cover: Installation
- Install the release bearing & lever. (Except for STI model) Ref. to CLUTCH SYSTEM>Release Bearing and Lever>INSTALLATION>EXCEPT FOR STI MODEL

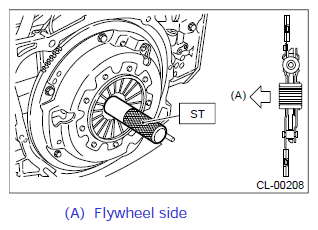

- Insert the ST into the clutch disc and attach to the flywheel by inserting the ST end into pilot bearing.NOTE: When installing the clutch disc, be careful to attach in the correct direction.
ST 499747100 CLUTCH DISC GUIDE

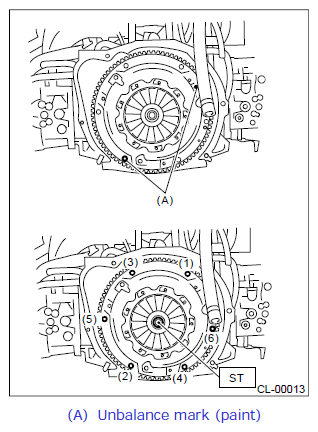

- Install the clutch cover and tighten the bolts to specified torque.NOTE:
- When installing a clutch cover, position the clutch cover so that the spacing between the unbalance marks (paint mark) on the flywheel and clutch cover is 120° or more apart. (The unbalance mark indicates the direction of residual unbalance.)
- Temporarily tighten the bolts by hand. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening Torque:
16 N.m (1.6 kgf-m, 11.8 ft-lb)
- Remove the ST.
ST 499747100 CLUTCH DISC GUIDE
- Install the transmission assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY75)>Manual Transmission Assembly>INSTALLATION Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY85)>Manual Transmission Assembly>INSTALLATION
