Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

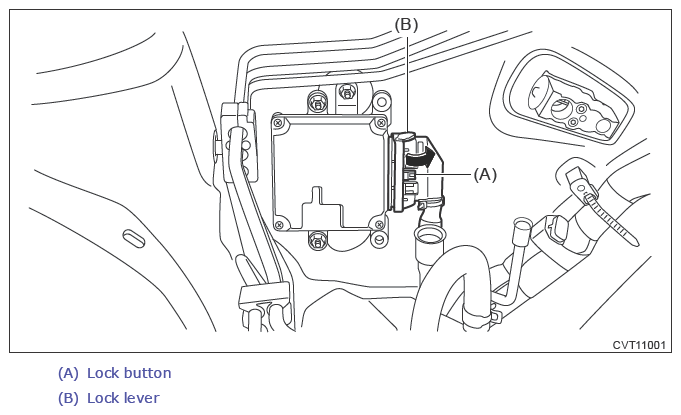

  2. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
    G13200068Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the TCM.
G13200069Courtesy of SUBARU OF AMERICA, INC.
