Pitching Stopper

Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

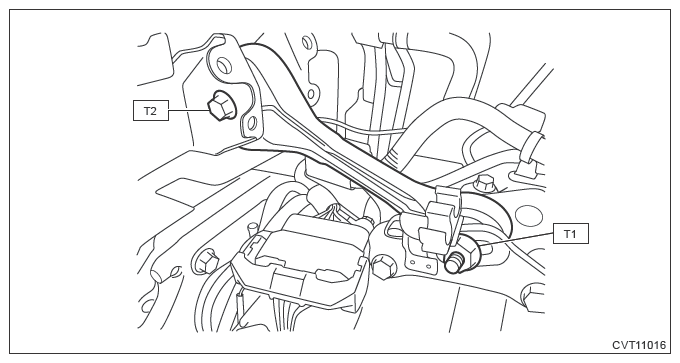

Fig 1: Pitching Stopper Bolts (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

1. Connect the coupling connector.
2. Install the clips.
