Rear Alignment (Inspection Value)
- Impreza model
Suspension height
(Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) mm (in)-15 (-0.59) Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) -1°20' Toe-in mm (in) IN3±3 (IN0.12±0.12) Toe angle (sum of both wheels): IN0°15'±15' Thrust angle (tolerance: 0°00'±30') 0°00' - Cross trek model
| Suspension height (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) mm (in) |
-78 (-3.07) |
| Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) | -45' |
| Toe-in mm (in) | IN3±3 (IN0.12±0.12) |
| Toe angle (sum of both wheels): IN0°15'±15' | |
| Thrust angle (tolerance: 0°00'±30') | 0°00' |
NOTE:
- Adjust with the value less than the inspection value, taking aging variation into consideration.
- Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.
- Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted.
- If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace them with new parts.

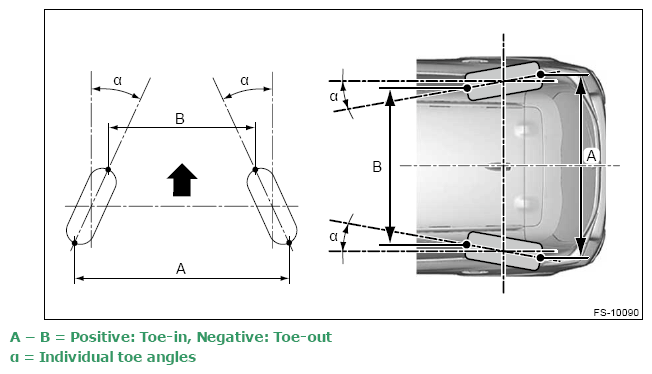

A - B = Positive: Toe-in, Negative: Toe-out
α = Individual toe angles
