Front Seat

• Driver's seat (manual type)

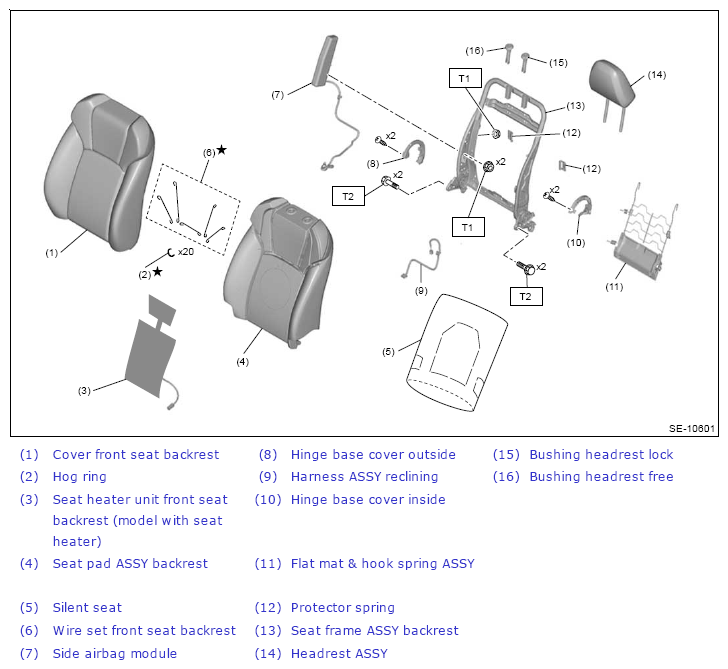

  Fig 1: Front Driver Seat - Manual Type Components Location (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6 (0.6, 4.4)

  T2: 52 (5.3, 38.4)

  Fig 2: Front Driver Seat - Manual Type Components Location (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 38 (3.9, 28.0)

  T2: 53 (5.4, 39.1)

• Driver's seat (power type)

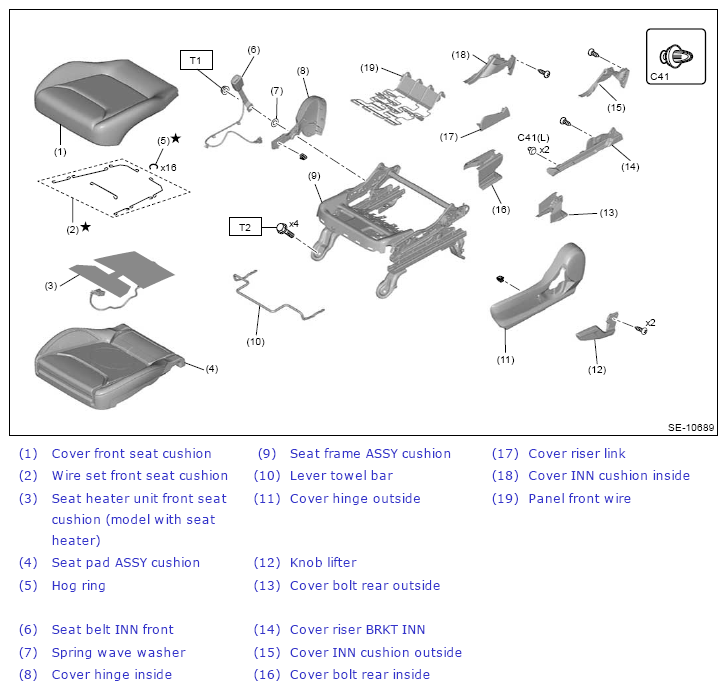

  Fig 3: Front Driver Seat - Power Type Components Location (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6 (0.6, 4.4)

  T2: 52 (5.3, 38.4)

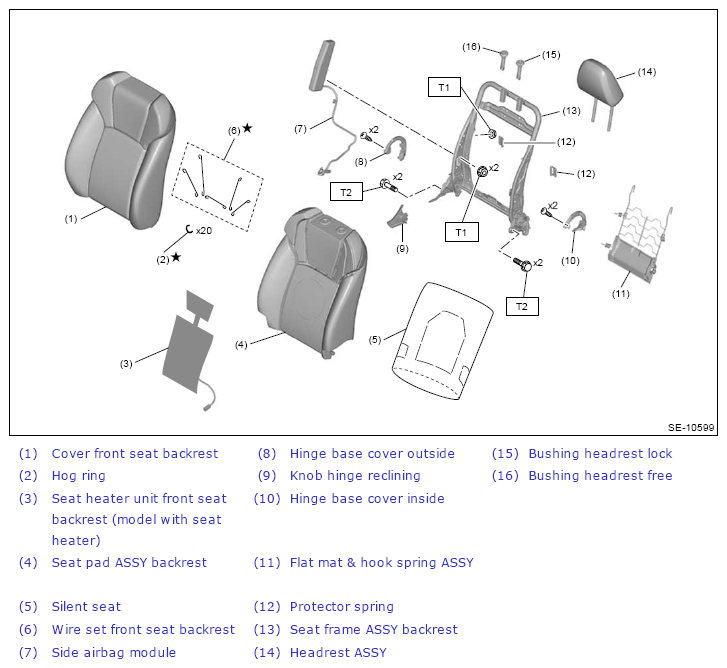

  Fig 4: Front Driver Seat - Power Type Components Location (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6 (0.6, 4.4)

  T2: 38 (3.9, 28.0)

  T3: 53 (5.4, 39.1)

• Passenger's seat (manual type)

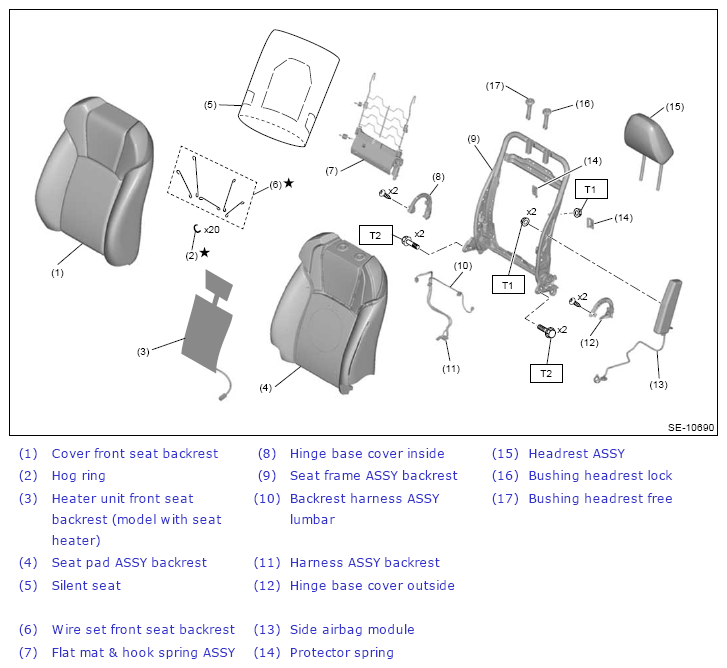

  Fig 5: Front Passenger Seat - Manual Type Components Location (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6 (0.6, 4.4)

  T2: 52 (5.3, 38.4)

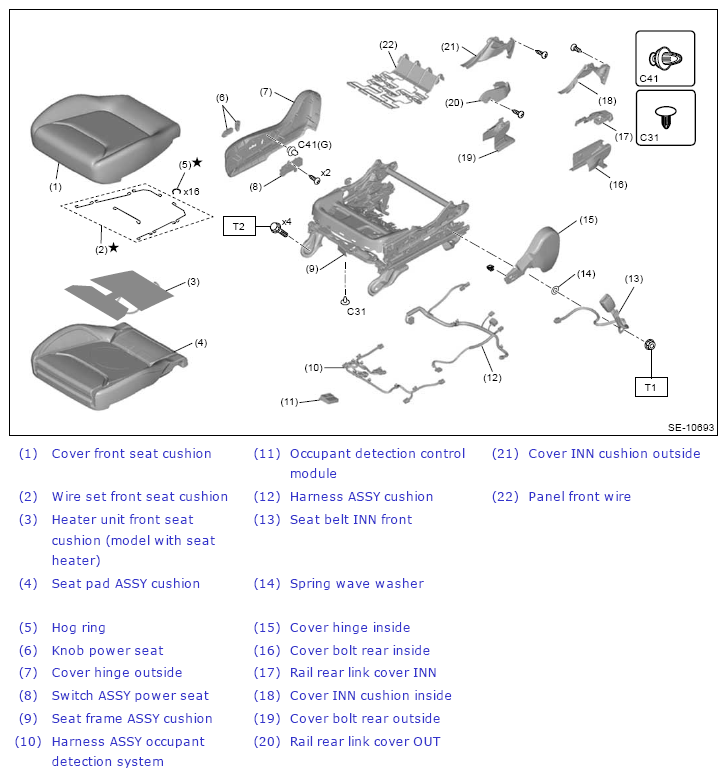

  Fig 6: Front Passenger Seat - Manual Type Components Location (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 38 (3.9, 28.0)

  T2: 53 (5.4, 39.1)

  NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.
• Passenger's seat (power type)

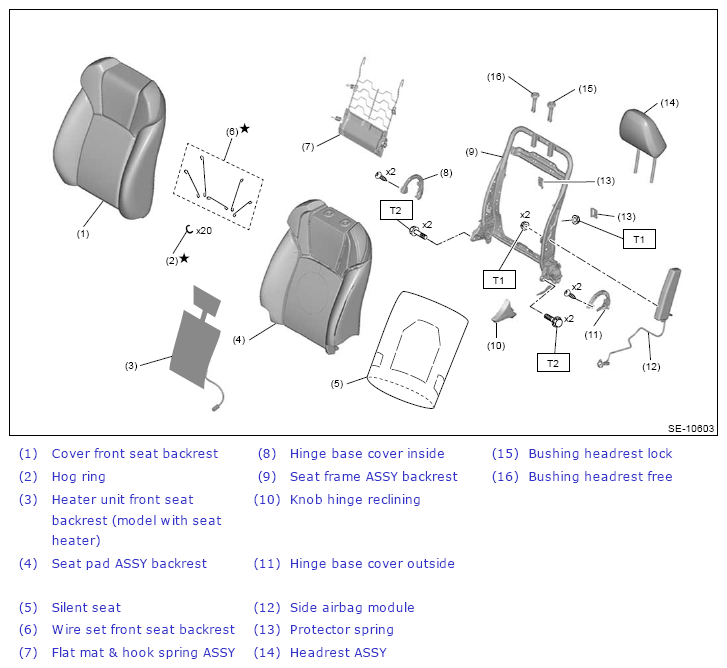

Fig 7: Front Passenger Seat - Power Type Components Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

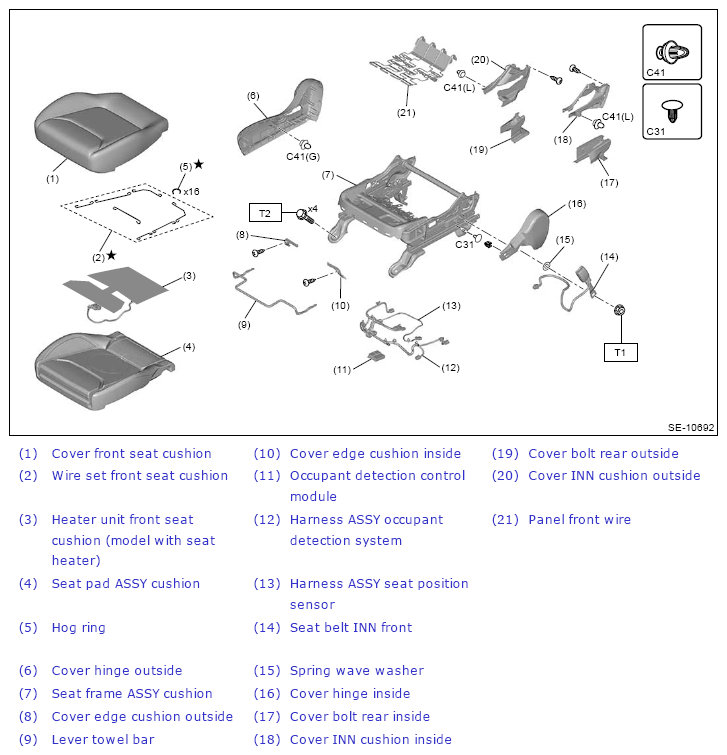

Fig 8: Front Passenger Seat - Power Type Components Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28.0)

T2: 53 (5.4, 39.1)
