Reverse Automatic Braking Control Module AND SONAR SENSOR

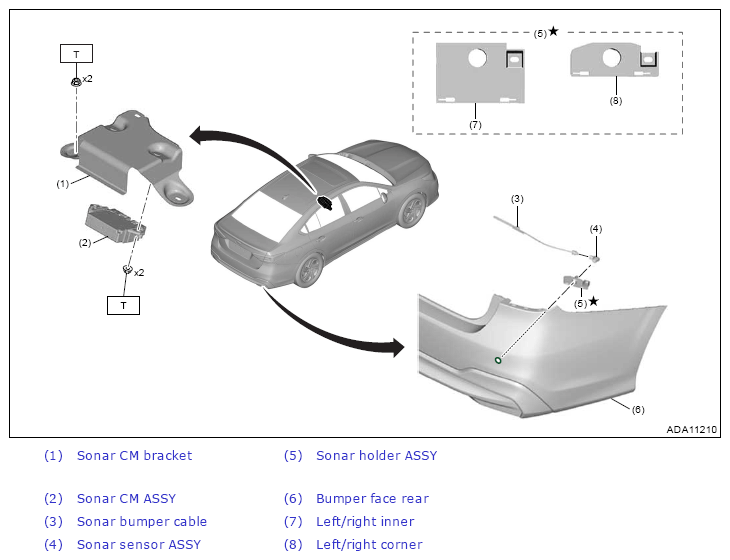

Fig 1: Reverse Automatic Braking Control Module And Sonar Sensor Components (With Torque Specification) (Sedan Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

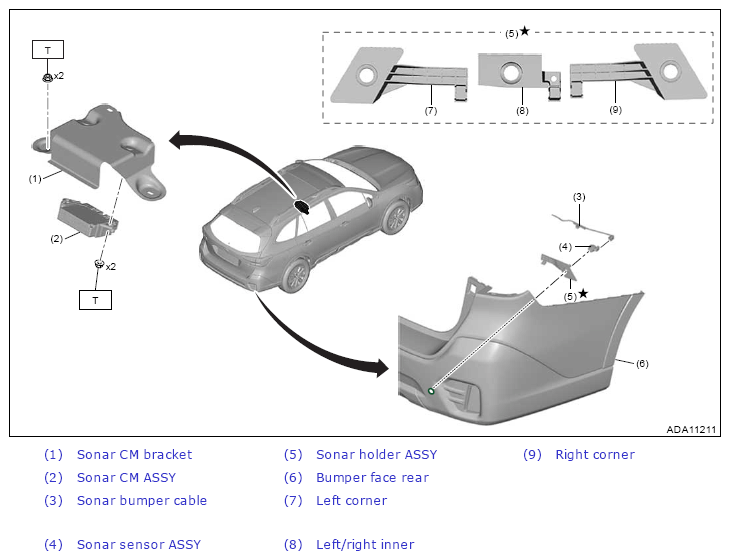

Fig 2: Reverse Automatic Braking Control Module And Sonar Sensor Components (With Torque Specification) (Outback Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
