Sedan Model

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly rear combination light.
    1. Remove the clip.

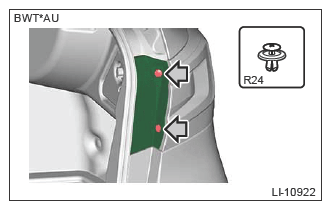

      G13622826Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claws, and then remove the cover assembly rear combination light.
      CAUTION:
      • Do not remove the cover forcibly if the cover is not unhooked. The claws of the cover or the combination light assembly may be damaged.
      • When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

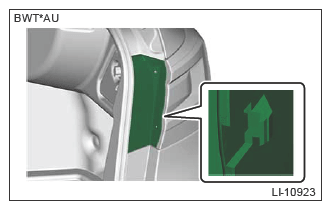

    G13622827Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the light assembly rear combination.
    1. Release the bolts and clips, then pull out the light assembly rear combination to the rear of the vehicle as shown in the figure.
      CAUTION: Be careful not to damage the clips.

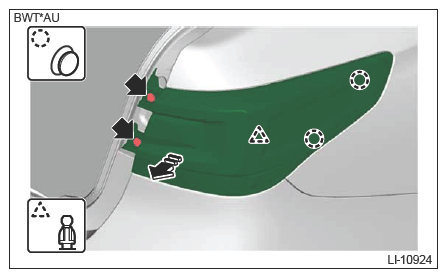

      G13622828Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the light assembly rear combination.
  4. Remove the cord assembly.
    1. Remove the connector clip.
    2. Remove the harness cover and disconnect the connector.
    3. Remove the bulb socket and remove the cord assembly.

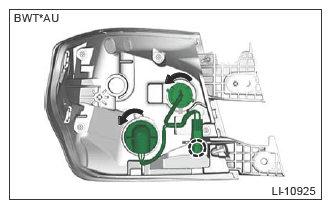

    G13622829Courtesy of SUBARU OF AMERICA, INC.
