Sedan Model

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work, Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Turn over the trunk trim panel side RH within the area where the operation can be performed. Refer to EXTERIOR/INTERIOR TRIM>Trunk Room Trim>REMOVAL

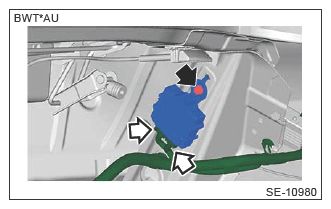

  3. Remove the bolt, disconnect the connector and remove the rear seat heater Control Module.
    G13625667Courtesy of SUBARU OF AMERICA, INC.
