Cam Carrier

WARNING: This page is about a different variant/trim than selected.

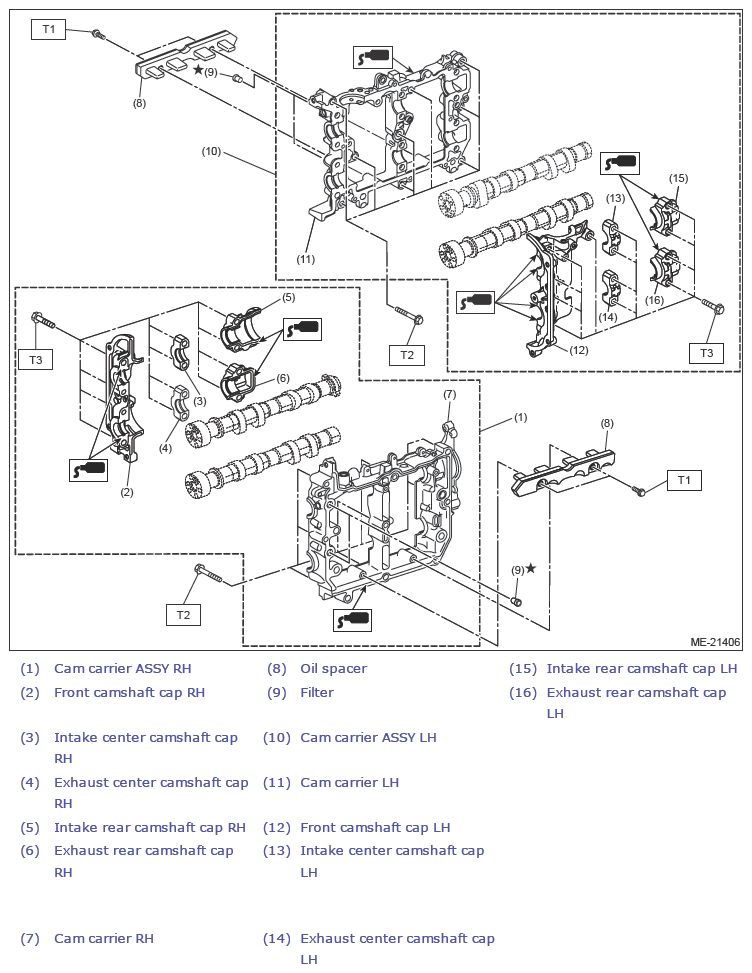

Fig 1: Cam Carrier Components (With Torque Specification)
G13620032Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2:  Refer to MECHANICAL (H4DOTC)>Cam Carrier>INSTALLATION .

T3:  Refer to MECHANICAL (H4DOTC)>Cam Carrier>ASSEMBLY .
