AT Shift Lock Control System
>>

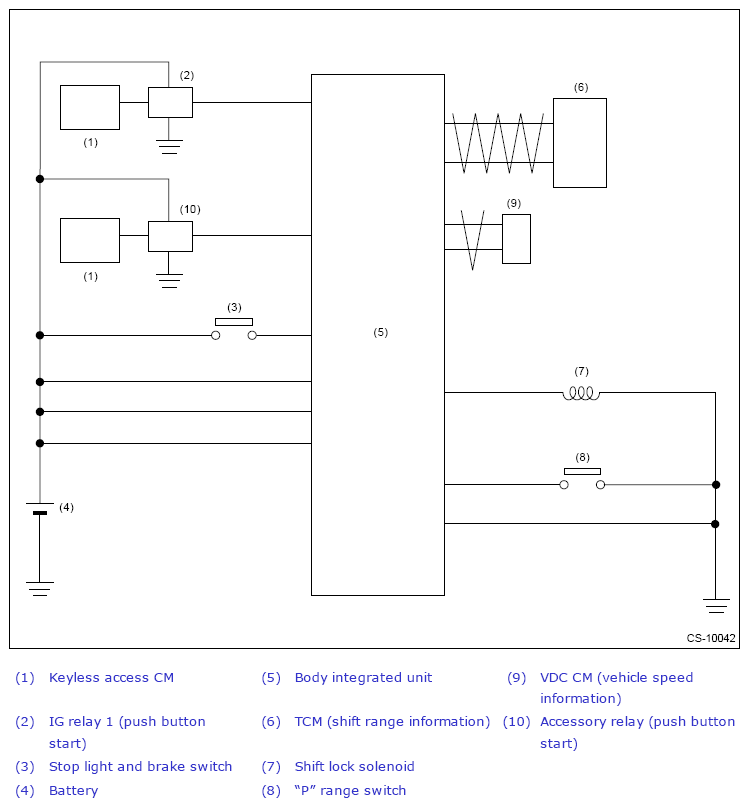

Wiring Diagram
>>
Model With Push Button Ignition Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Model With Push Button Ignition Switch
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
