System Block Diagram

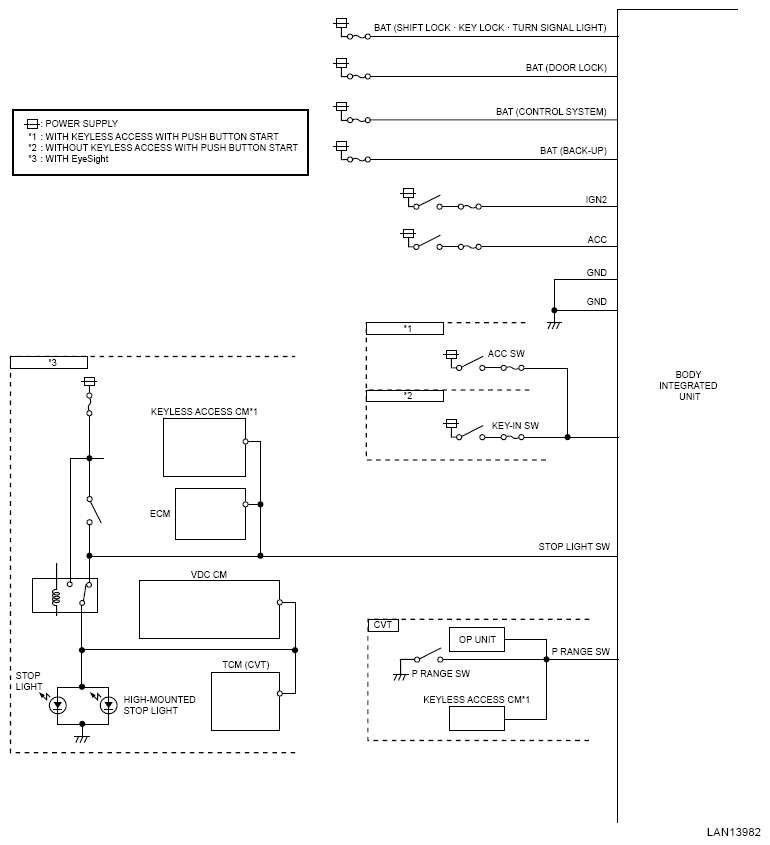

G13873563

Courtesy of SUBARU OF AMERICA, INC.

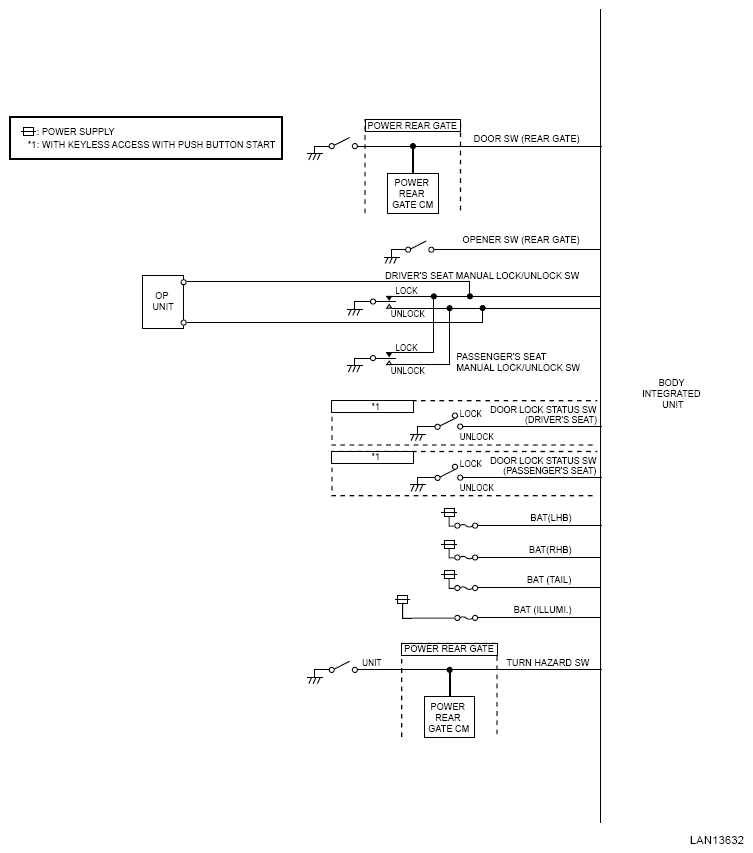

G13873564

Courtesy of SUBARU OF AMERICA, INC.

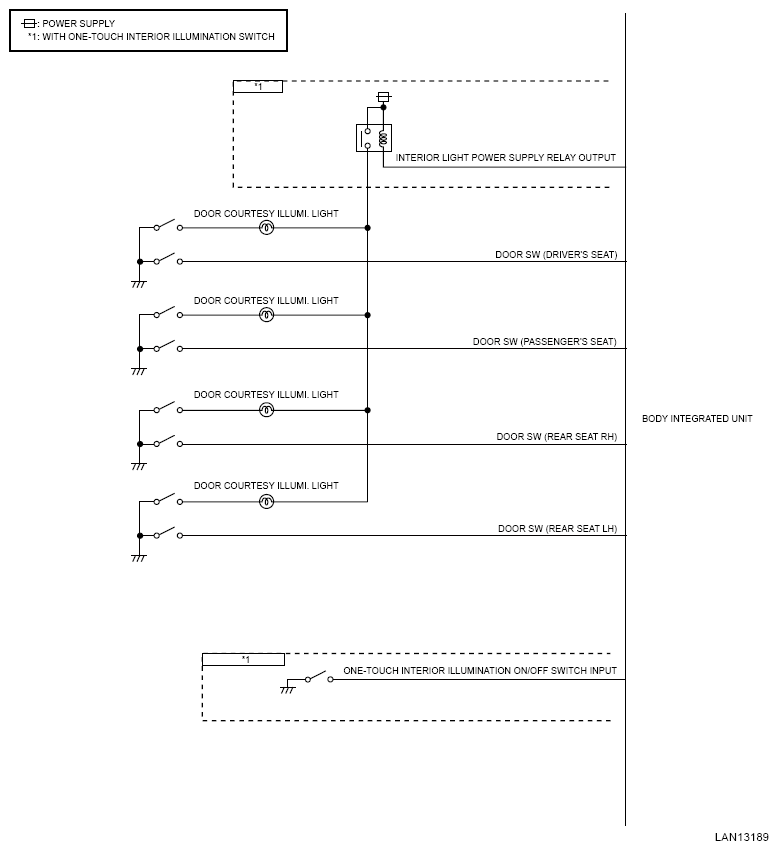

G13873565

Courtesy of SUBARU OF AMERICA, INC.

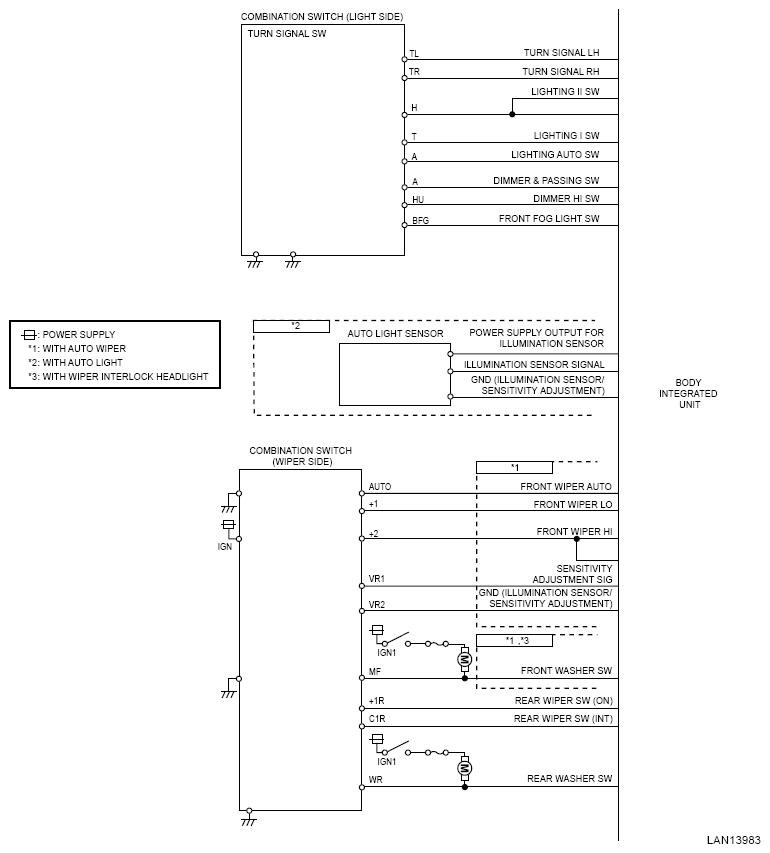

G13873566

Courtesy of SUBARU OF AMERICA, INC.

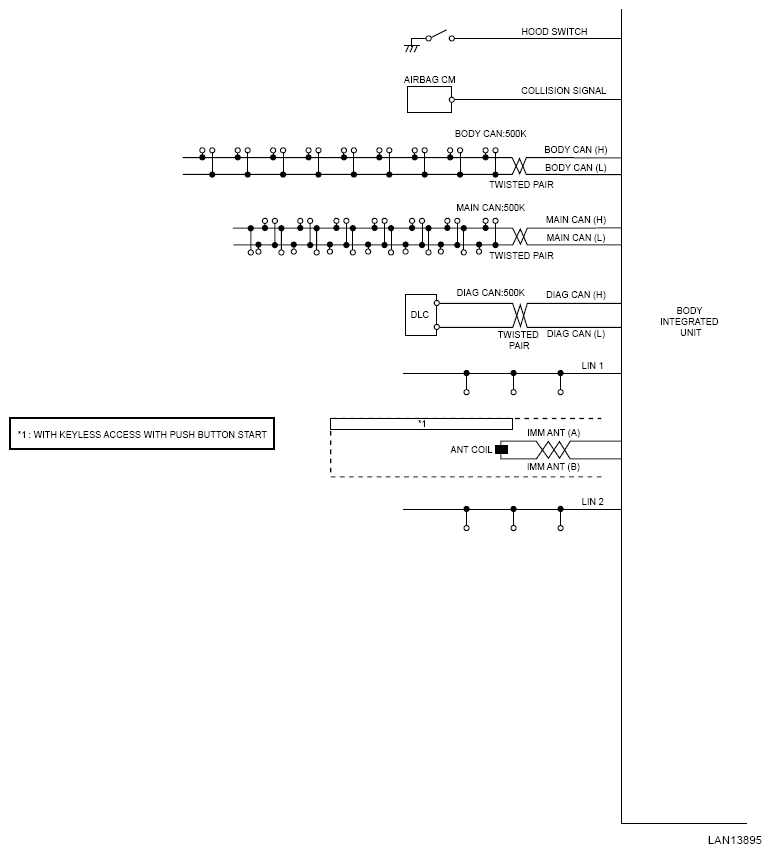

G13873567

Courtesy of SUBARU OF AMERICA, INC.

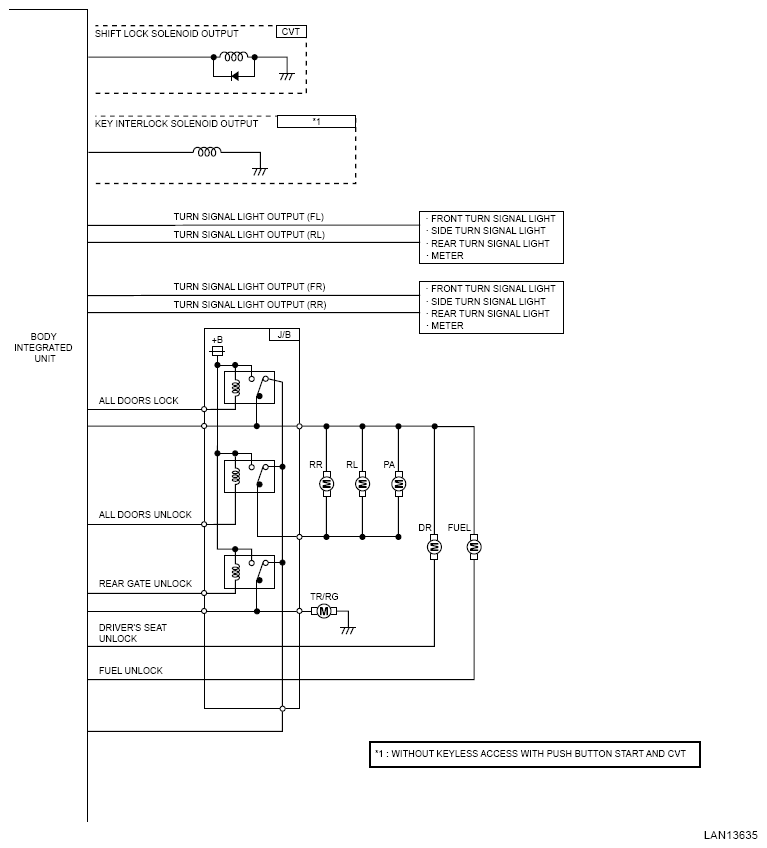

G13873568

Courtesy of SUBARU OF AMERICA, INC.

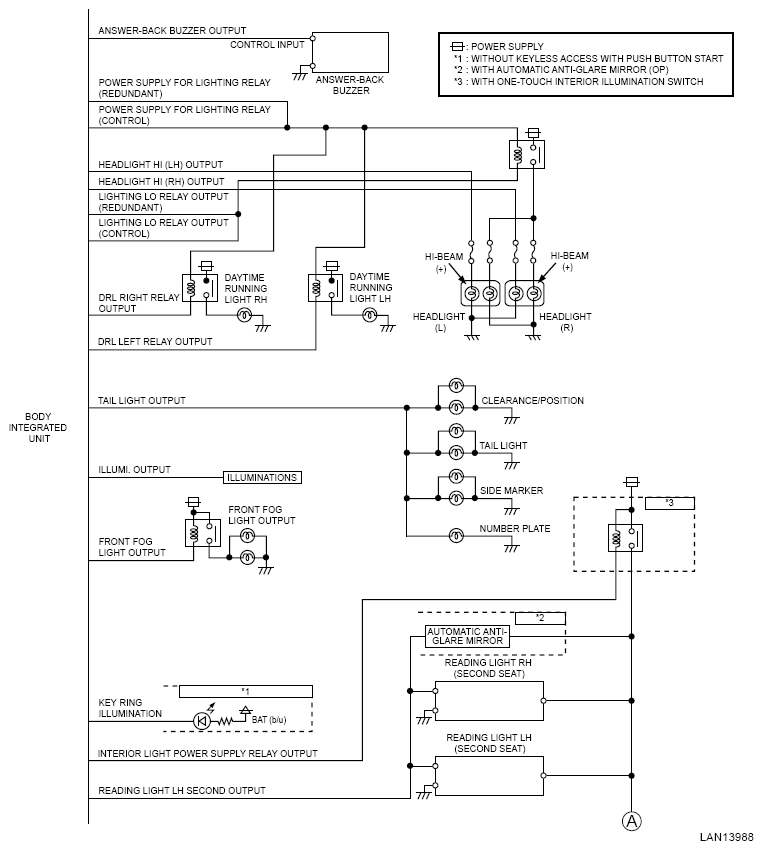

G13873569

Courtesy of SUBARU OF AMERICA, INC.

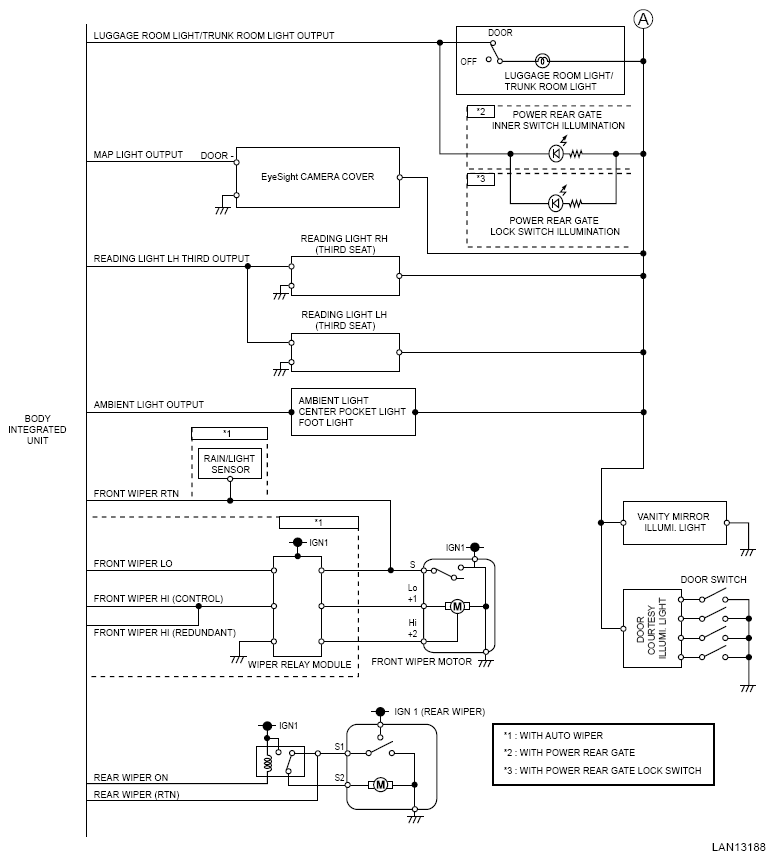

G13873570

Courtesy of SUBARU OF AMERICA, INC.

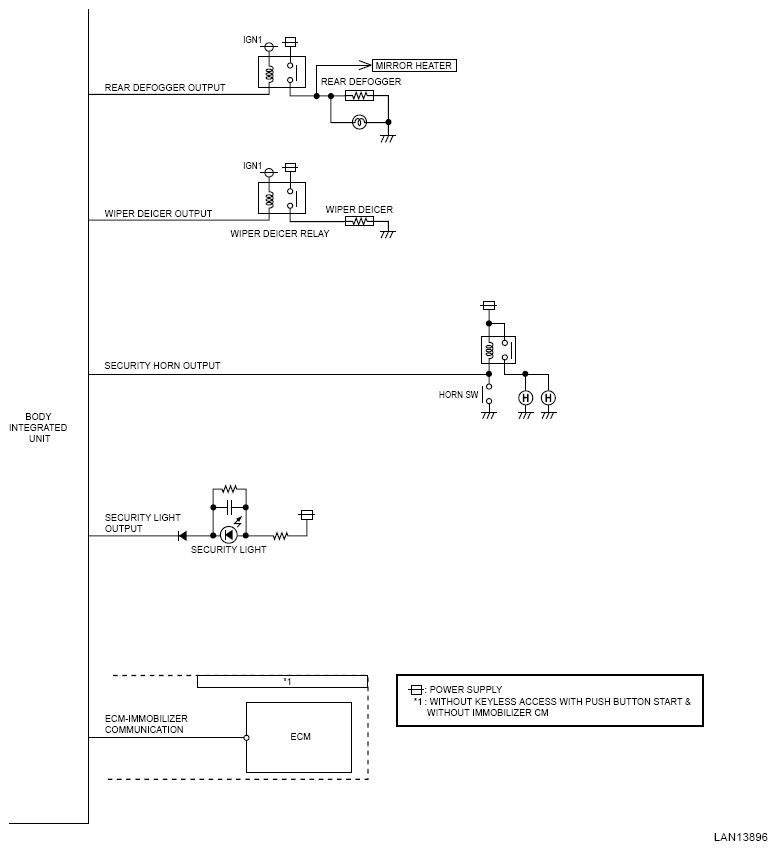

G13873571

Courtesy of SUBARU OF AMERICA, INC.
