PCV Hose Assembly No. 2

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the oil catch tank. Ref. to INTAKE (INDUCTION) (H4DOTC)>Oil Catch Tank>REMOVAL .
  3. Remove the clamp cover.
    G11266565Courtesy of SUBARU OF AMERICA, INC.

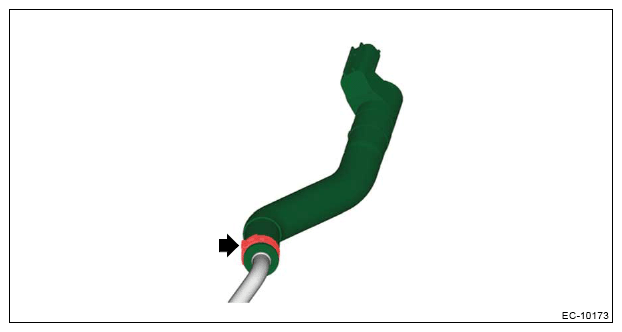

  4. Break the clamp, and remove the PCV hose assembly No. 2 from the oil catch tank.
    G13198558Courtesy of SUBARU OF AMERICA, INC.

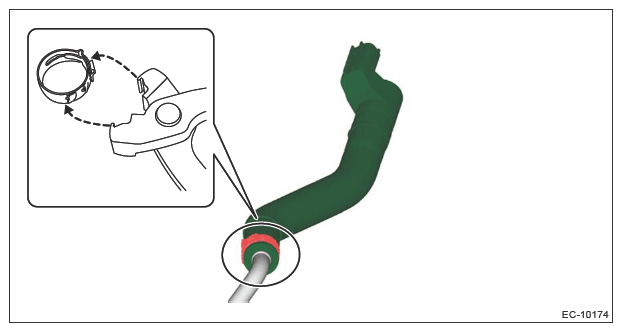

  5. Install the PCV hose assembly No. 2 to the oil catch tank using a new clamp and the Clamp pincer (14100134).
    G13198559Courtesy of SUBARU OF AMERICA, INC.
  6. Install the clamp cover.

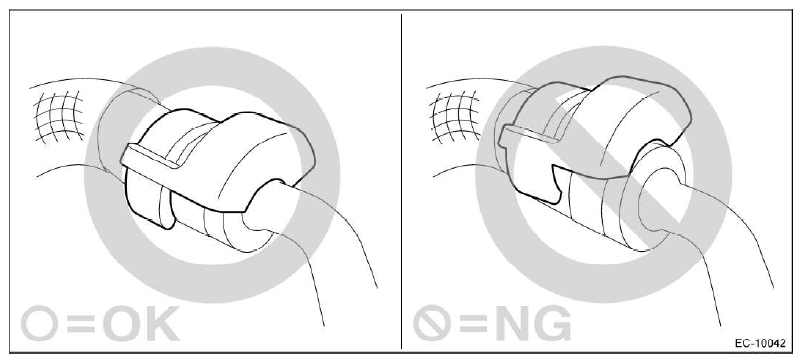

    CAUTION: Be careful not to allow the lower part of the clamp cover to ride over the PCV hose assembly No. 2.
    G11266569Courtesy of SUBARU OF AMERICA, INC.
  7. Install the oil catch tank. Ref. to INTAKE (INDUCTION) (H4DOTC)>Oil Catch Tank>INSTALLATION .
  8. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
