Backup Unit: Removal

  1. Disconnect the ground terminal from battery sensor, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille ventilation assembly center, Ref. to AIR CONDITIONER>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the switch assembly hazard. Ref. to LIGHTING SYSTEM>Hazard Switch>REMOVAL .
  4. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>Audio>REMOVAL .

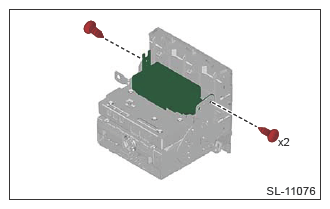

  5. Remove the screws and remove the backup unit.
G13201485Courtesy of SUBARU OF AMERICA, INC.
