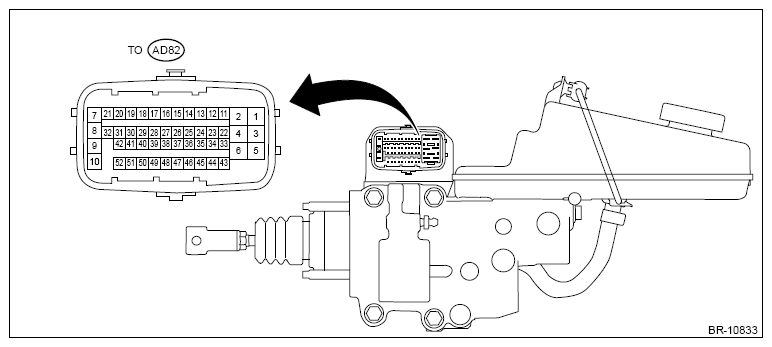

Electrical Specification

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Contents	Measuring condition	Standard
(AD82) No. 1	Motor drive power supply input 1	-	-
(AD82) No. 2 ↔ Chassis ground	Motor drive power supply output 1	Always	Battery voltage
(AD82) No. 3	Motor drive power supply input 2	-	-
(AD82) No. 4 ↔ Chassis ground	Motor drive power supply output 2	Always	Battery voltage
(AD82) No. 8	Ground	-	-
(AD82) No. 9	Ground	-	-
(AD82) No. 10 ↔ Chassis ground	Solenoid power supply	Always	Battery voltage
(AD82) No. 12	FR wheel speed sensor input	-	-
(AD82) No. 13 ↔ Chassis ground	Backup power supply	Always	Battery voltage
(AD82) No. 16	RR wheel speed sensor input	-	-
(AD82) No. 17 ↔ Chassis ground	IG2 signal	Ignition switch: ON	Ignition power supply voltage
(AD82) No. 19	Vehicle speed output	-	-
(AD82) No. 20 ↔ Chassis ground	Brake light SW input 1	Brake pedal operation	Brake ON: Battery voltage Brake OFF: Ground
(AD82) No. 21	Brake stroke sensor GND 1	-	-
(AD82) No. 22 ↔ Chassis ground	Main power supply	Always	Battery voltage
(AD82) No. 23	Brake fluid level switch	-	-
(AD82) No. 24	Brake stroke sensor input 1	-	-
(AD82) No. 26	Brake stroke sensor input 2	-	-
(AD82) No. 28	Brake stroke sensor power supply 2	-	-
(AD82) No. 29	Brake light drive relay output	-	-
(AD82) No. 30 ↔ Chassis ground	IG1 signal	Ignition switch: ON	Ignition power supply voltage
(AD82) No. 31 ↔ Chassis ground	Driver's side door switch	Operation of driver's door	The moment when a door is opened: Continuity Other: Ground
(AD82) No. 32	Brake stroke sensor power supply 1	-	-
(AD82) No. 33	P-Bus CAN_L	-	-
(AD82) No. 34	P-Bus CAN_H	-	-
(AD82) No. 36	FL wheel speed sensor input	-	-
(AD82) No. 37	Brake stroke sensor GND 2	-	-
(AD82) No. 39	RL wheel speed sensor input	-	-
(AD82) No. 41 ↔ Chassis ground	Brake light SW input 2	Brake pedal operation	Brake ON: Battery voltage Brake OFF: Ground
(AD82) No. 43	C-Bus CAN_L	-	-
(AD82) No. 44	C-Bus CAN_H	-	-
