Cylinder Block

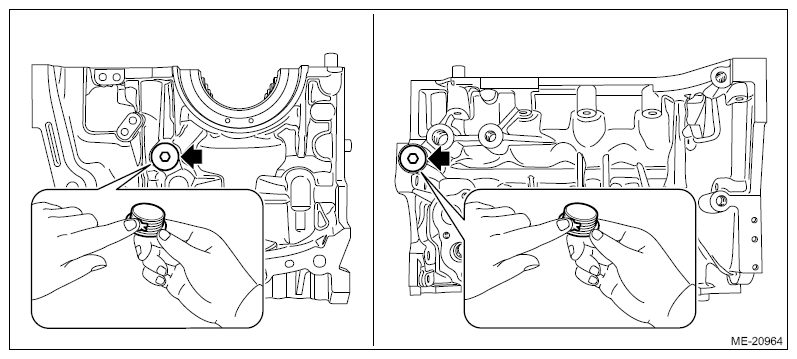

Liquid gasket:

THREE BOND 1105 (part No. 004403010) or equivalent

Tightening torque:

37 N.m (3.8 kgf-m, 27.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

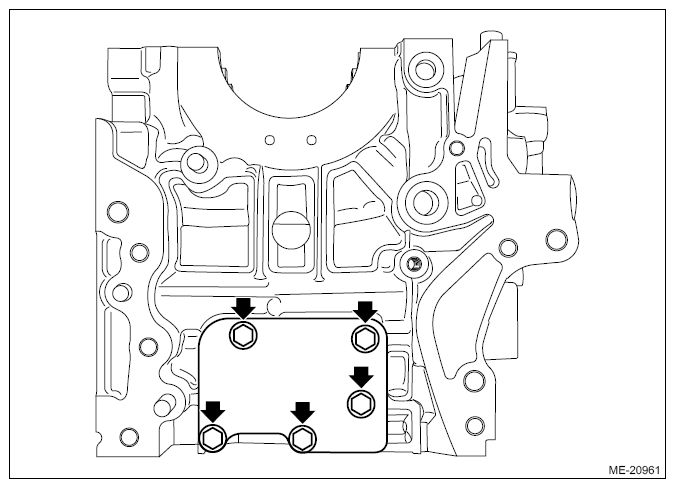

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Liquid gasket:

THREE BOND 1105 (part No. 004403010) or equivalent

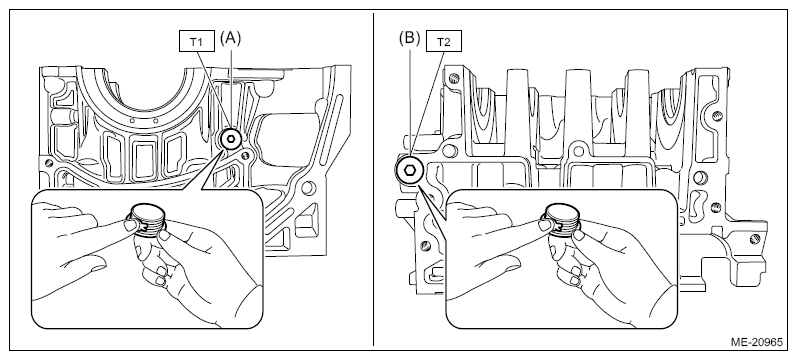

Tightening torque:

T1: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T2: 37 N.m (3.8 kgf-m, 27.3 ft-lb)

Fig 1: Cylinder Block And Main Gallery Plug (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

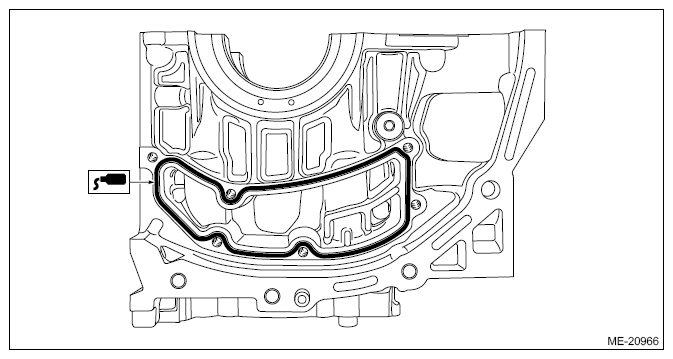

1. Apply liquid gasket to the mating surfaces of oil separator cover.
   NOTE:

   • Use new oil separator cover.
   • Before applying liquid gasket, degrease the old liquid gasket seal surface of cylinder block RH.
   • Install within 5 min. after applying liquid gasket.

     Liquid gasket:

     THREE BOND 1217G (part No. K0877Y0100), THREE BOND 1217H or equivalent Liquid gasket applying diameter:

     4±1 mm (0.1772±0.0394 in)

   Courtesy of SUBARU OF AMERICA, INC.

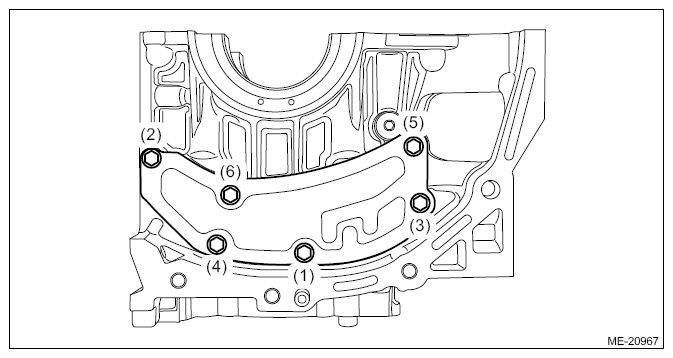

2. Install the oil separator cover to the cylinder block RH, and tighten the oil separator cover bolts in numerical order as shown in the figure.

   Tightening torque:

   6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

   Fig 2: Oil Separator Cover Bolts Tightening Sequence

   Courtesy of SUBARU OF AMERICA, INC.
