Cylinder Block 2

2.0 L model

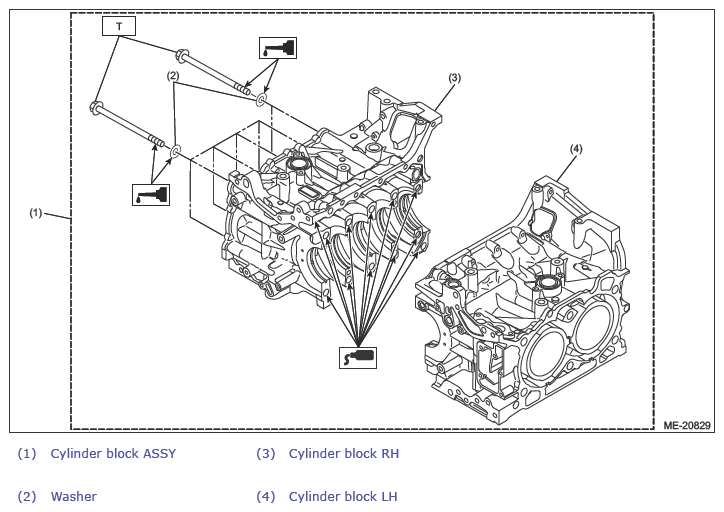

Fig 1: Cylinder Block 2 Components (2.0 L Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER BLOCK>INSTALLATION .
2.5 L model

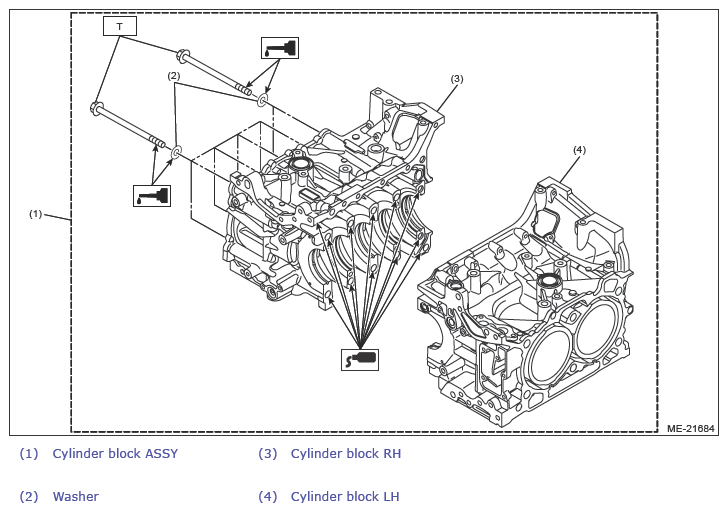

Fig 2: Cylinder Block 2 Components (2.5 L Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.mm (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER BLOCK>INSTALLATION .
