Bushing Front - Front Arm (CROSSTREK Model)

1. Put an alignment mark on the front arm assembly based on the split portion of the bushing intermediate plate of the bushing front - front arm.
   CAUTION: Always put an alignment mark for aligning the position on bushing installation.

   Courtesy of SUBARU OF AMERICA, INC.

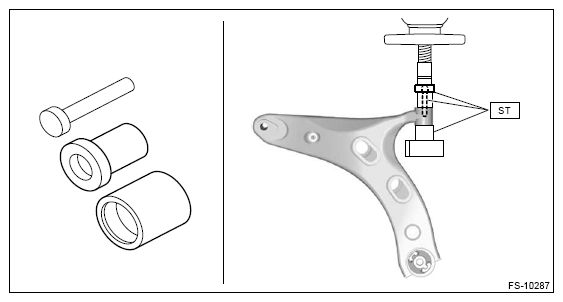

2. Using the ST and a press, remove the bushing front - front arm.

Preparation tool:

ST: INSTALLER & REMOVER SET (927680000)

Courtesy of SUBARU OF AMERICA, INC.
