IMPREZA Model

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the crossmember support - rear. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .

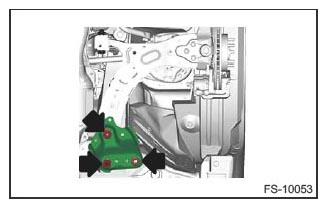

  4. Remove the front arm rear plate.
    G11253807Courtesy of SUBARU OF AMERICA, INC.

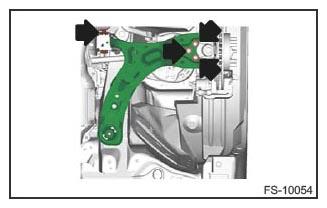

  5. Remove the front arm assembly.
G11253808Courtesy of SUBARU OF AMERICA, INC.
