Stabilizer Bushing

  1. Lift up the vehicle.
  2. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the crossmember support - rear. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  4. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

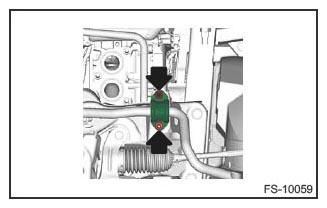

  5. Remove the clamp - stabilizer bushing on the left and right sides.
    G11253795Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bushing - stabilizer.
